3.5.4 Mounting the C Image Position Correction Mirror Unit

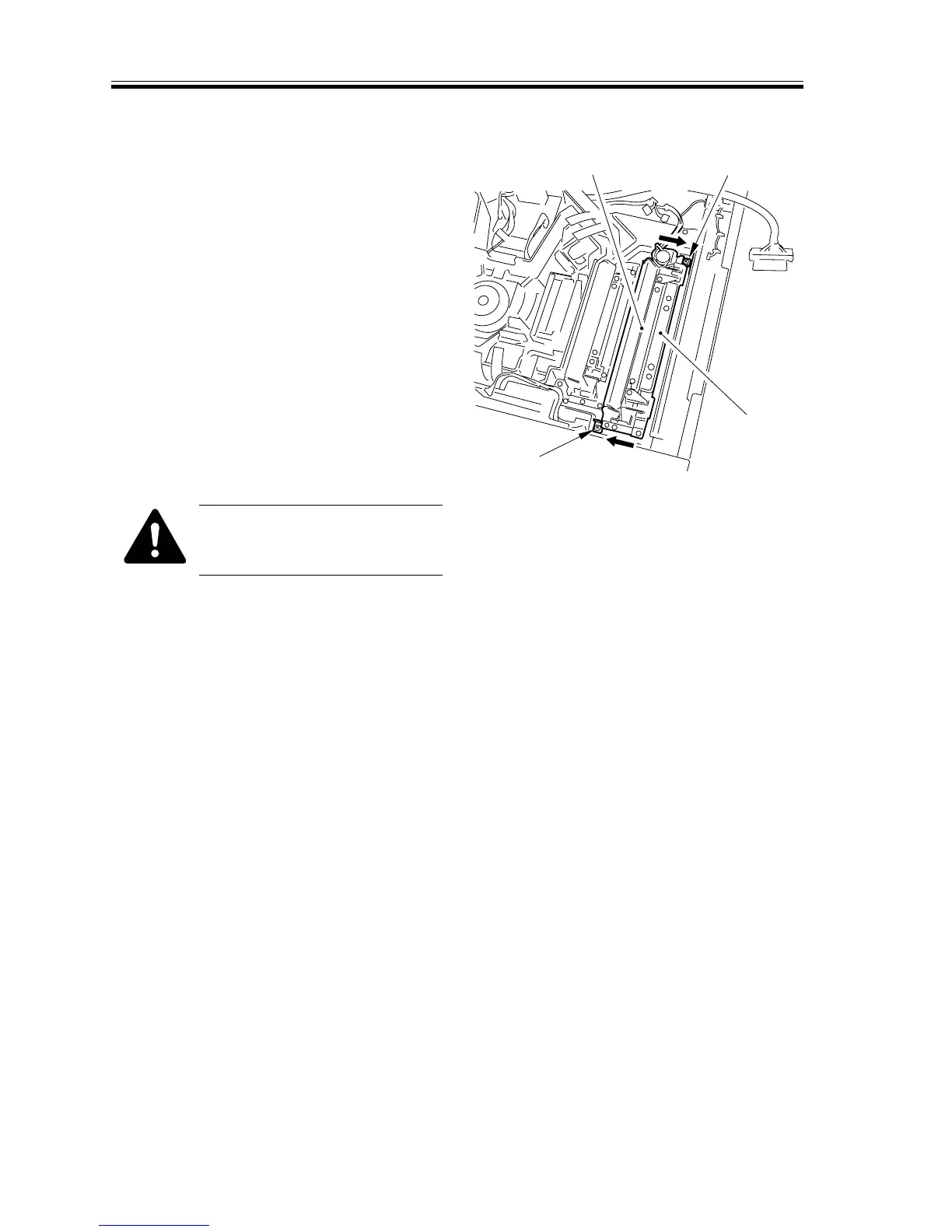

1) Force the C image position correction
mirror assembly [1] accurately against
the butting plate [2], and secure it in
place.
[1]
[2]
[2]
[3]
02-305-12
Be sure to attach the weight [3]
whenever replacing the mirror
unit.
