6.3 Clutches
Notation Name
CL 1 Toner supply clutch (C)
CL 2 Toner supply clutch (M)
CL 3 Toner supply clutch (Y)
CL 4 Toner supply (upper) clutch (Bk)
CL 5 Toner supply (lower) clutch (Bk)
CL 6 Multifeeder pickup roller clutch
Notation Name
CL 7 Paper thickness detection roller
clutch
CL 10 Re-pickup roller clutch
CL 12 Cassette 1 pickup roller clutch
CL 14 Cassette 2 pickup roller clutch
CL 16 Reversing roller drive clutch
CL 17 Transfer belt lifter clutch

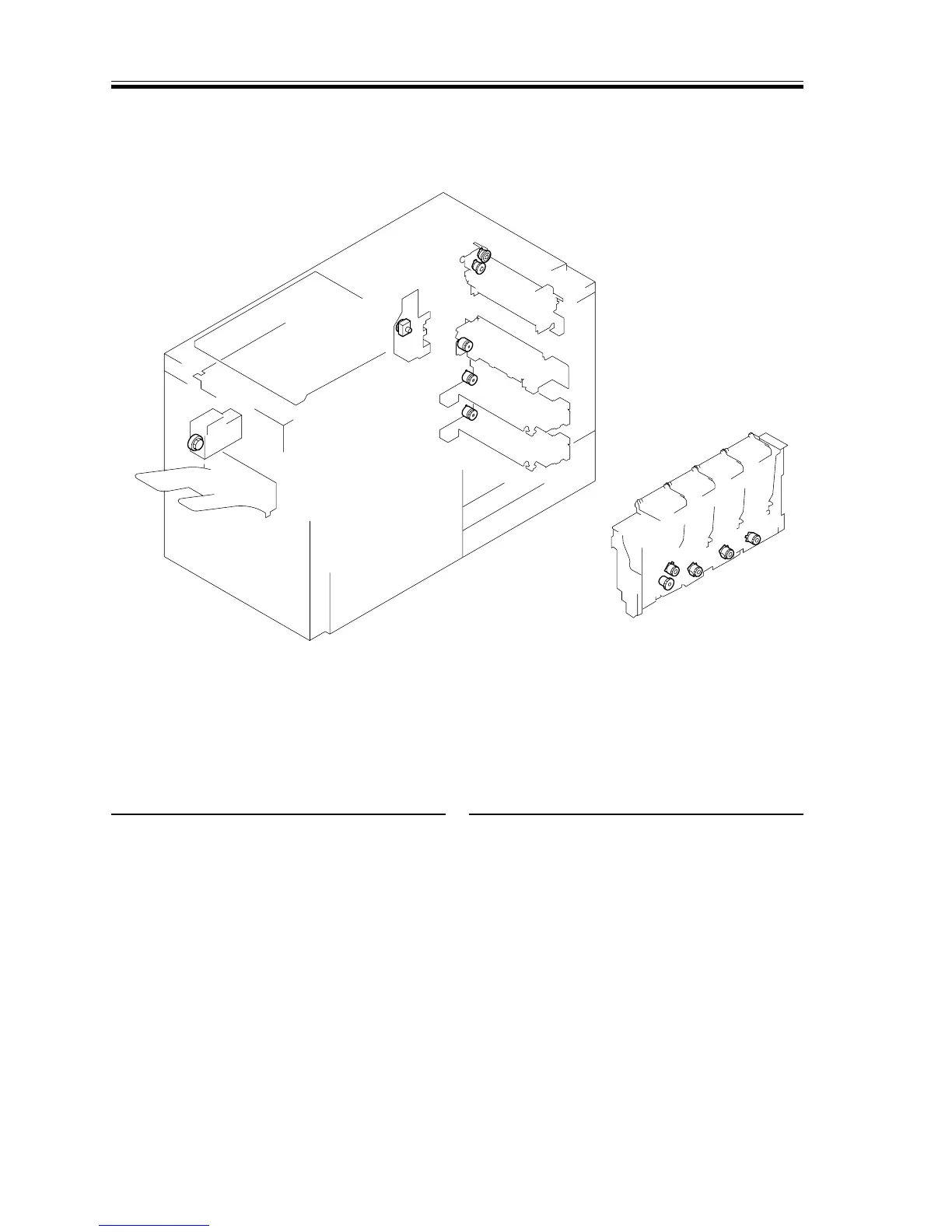

F05-603-01
T05-603-01
CL6
CL7
CL12
CL10
CL16
CL17
CL14
CL1
CL2
CL3
CL4
CL5
