Canon CLC5000 - Removing the Re-Pickup Motor

2-109
CHAPTER 2 NEW FUNCTIONS
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON CLC5000 REV.0 JAN. 2001
5.7.4 Removing the Re-Pickup Motor
1) Remove the right cover. (See F02-507-
02.)
2) Remove the re-pickup assembly. (See
5.7.3 “Removing the Re-Pickup Unit.”)

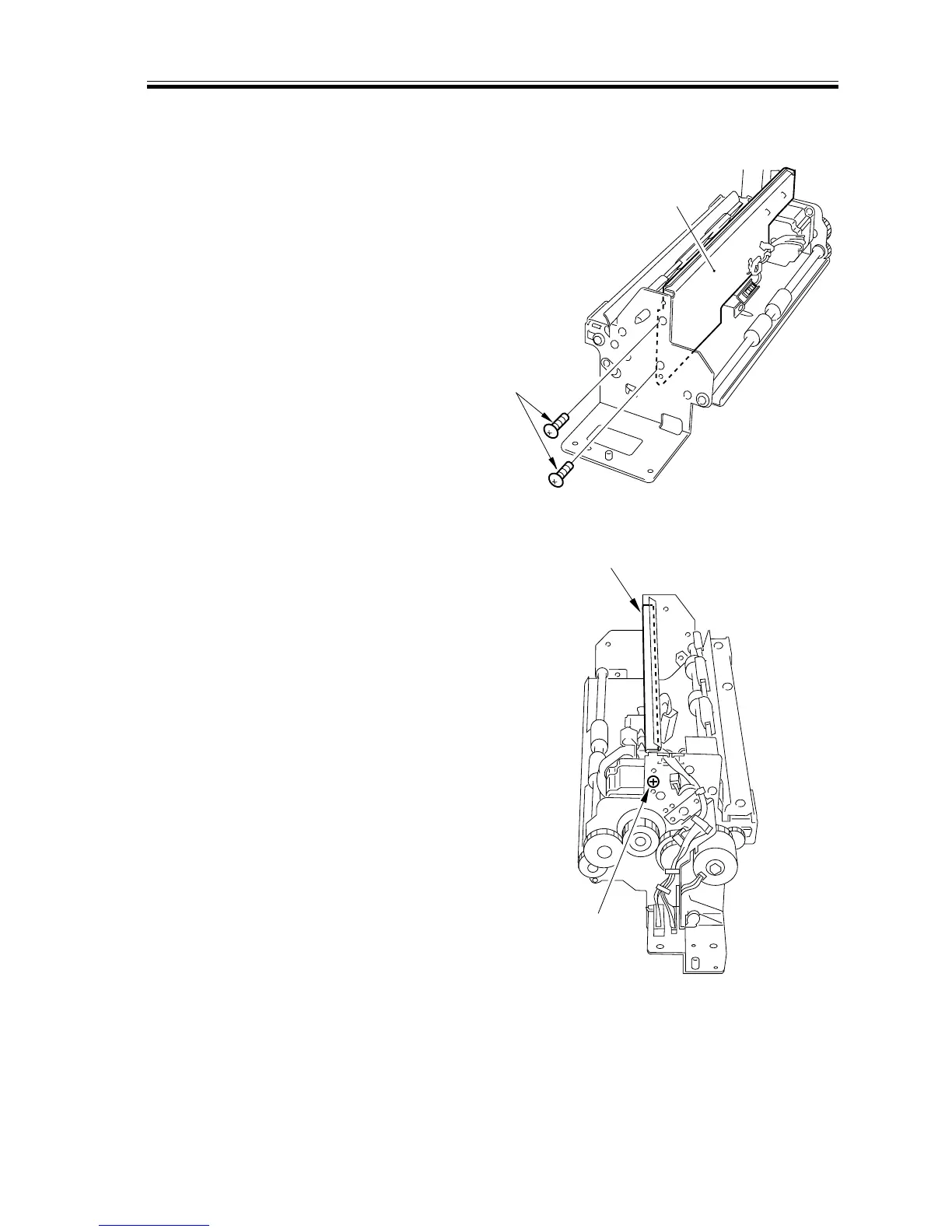

3) Remove the two screws [1] at the front
and the screw [2] at the rear; then, de-
tach the stay [3].
F02-507-08
F02-507-09
[3]
[1]
[2]
[3]
