Canon CLC5000 - Orientation of the Cassette Pickup Roller

COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON CLC5000 REV.0 JAN. 2001
CHAPTER 5 TROUBLESHOOTING IMAGE FAULTS/MALFUNCTIONS
5-36
A4/A3
A4R
STMT-R
STMT-R
(139.7mm)
A4R
(210mm)
A4
(297mm)

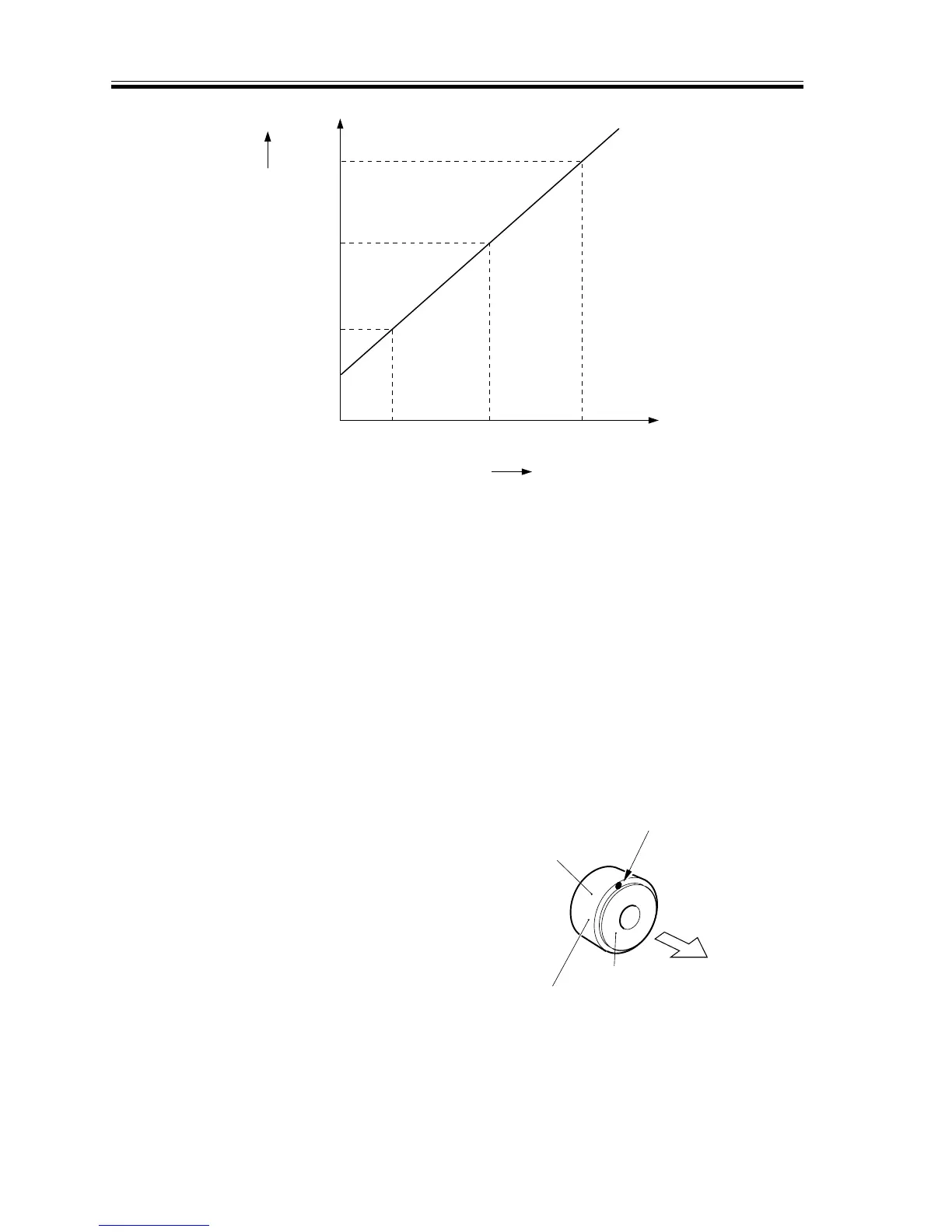

Paper width
Variable resistor output
F05-207-02
2.7.2 Orientation of the Cassette Pickup Roller
When mounting the pickup roller [1] to
the pickup assembly, be sure that the round
marking [2] on the rubber portion is to the
front of the machine.
The pickup roller is identified as follows
by the color of its collar:
front : gold color
rear : silver color
Be sure to use the appropriate roller.
F05-207-03
[1]
[2]
Note)
Color of roller : gray
Front of the machine
Color
