Canon CLC5000 - Paper Deck-K1

COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON CLC5000 REV.0 JAN. 2001
CHAPTER 5 TROUBLESHOOTING IMAGE FAULTS/MALFUNCTIONS
5-208

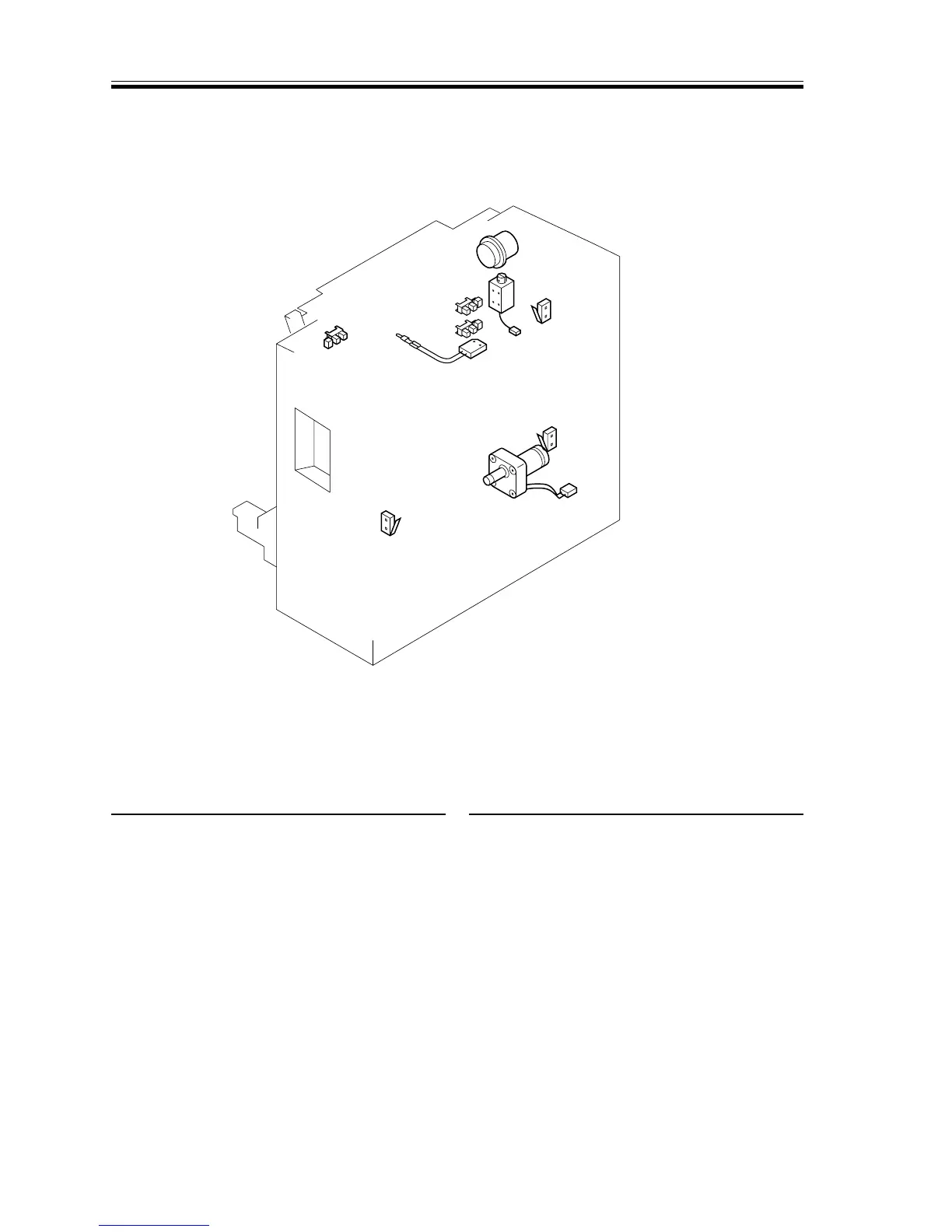

6.9 Paper Deck-K1
Notation Name
M8001 Paper deck lifter motor
SW8001 Lifter upper limit switch
SW8002 Lifter lower limit switch
SW8003 Cover open/closed detecting switch
PS8001 Lifter sensor (lower)
PS8002 Lifter sensor (upper)
PS8003 Deck sensor
Notation Name
CL8002 Pickup clutch
SL8001 Pickup roller releasing solenoid
H8001 Paper deck heater (1)
F05-609-01
T05-609-01
SW8002
SW8003
CL8002
SL8001
SW8001
M8001
PS8003
PS8002
PS8001
H8001
