Canon CLC5000 - Removing the Re-Pickup Assembly

2-108
CHAPTER 2 NEW FUNCTIONS
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON CLC5000 REV.0 JAN. 2001

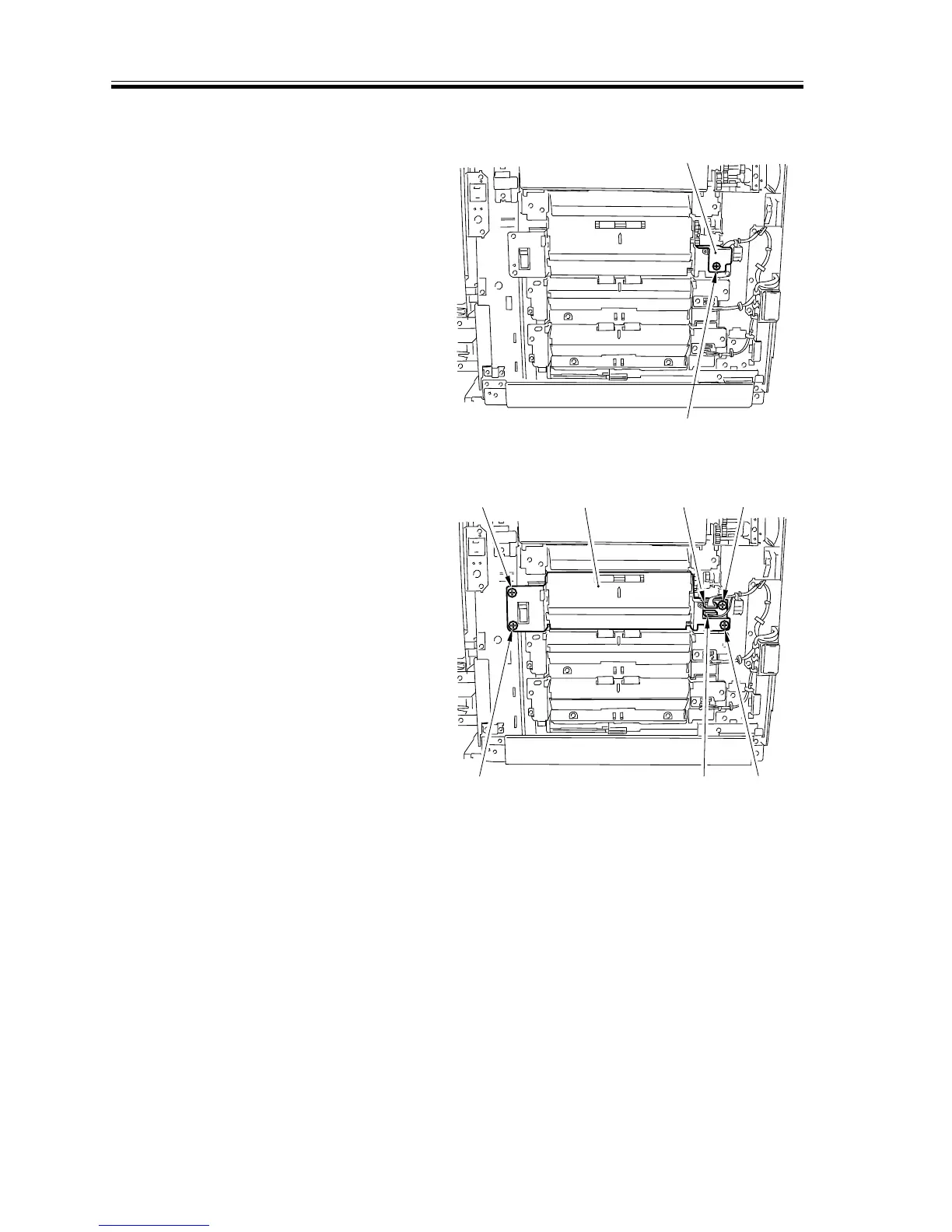

5.7.3 Removing the Re-Pickup Assembly
1) Remove the right cover. (See F02-507-
02.)
2) Remove the screw [1] at the rear, and
detach the connector cover [2].
F02-507-06
3) Disconnect the two connectors [3], and
remove the two screws [4] at the front
and the two screws [5] at the rear; then,
detach the re-pickup assembly [6].
F02-507-07
[2]
[1]
[4]
[6]
[3]
[5]
[4]
[5]
[3]
