CHAPTER 2 NEW FUNCTIONS
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON CLC5000 REV.0 JAN. 2001

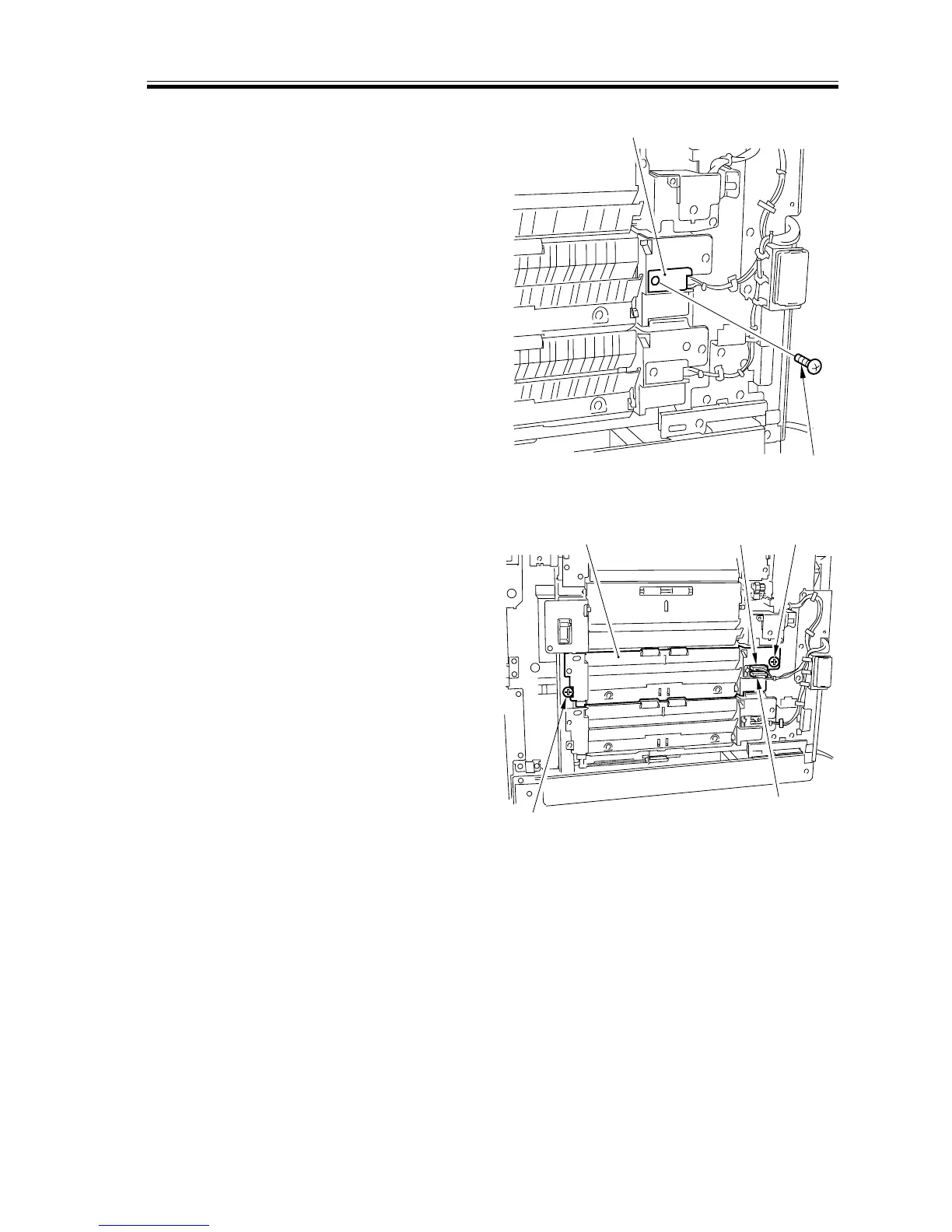

4) Remove the screw [6], and detach the
connector cover [7].
F02-507-04
5) Disconnect the two connectors [8], and
remove the two screws [9]; then, detach
the cassette pickup unit [10].
F02-507-05
[7]
[6]
[10]
[9]
[9]
[8]
[8]
