Canon CLC5000 - Upper Fixing Cleaner Assembly

2-141
CHAPTER 2 NEW FUNCTIONS
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON CLC5000 REV.0 JAN. 2001
6.10.2 Upper Fixing Cleaner Assembly
a.Removing the Upper Fixing Web
1) Open the front cover (left), and shift
down the fixing assembly lever; then,
slide out the fixing unit.
2) Remove the fixing assembly knob.
3) Remove the fixing front cover.
4) Open the outside delivery unit and the
inside delivery unit.

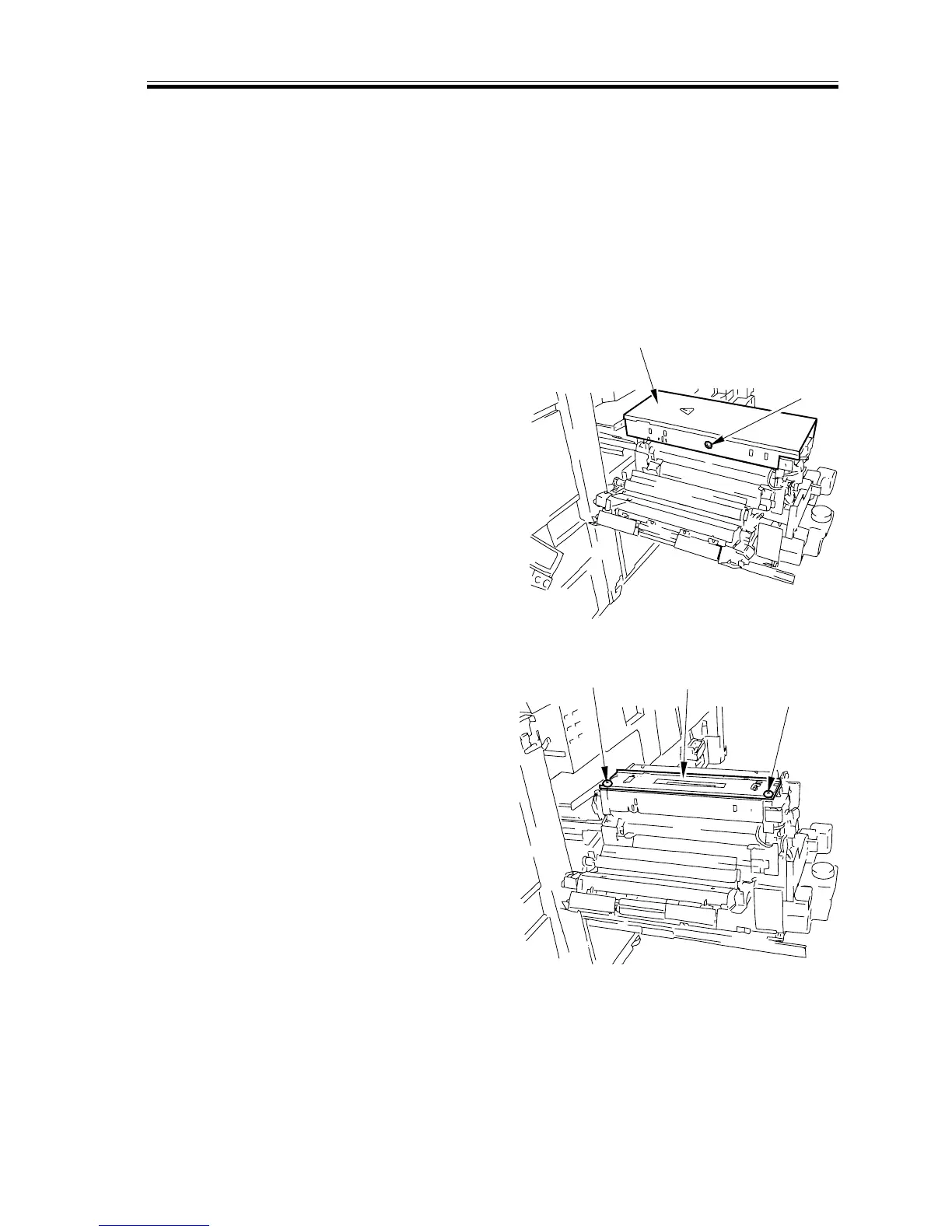

5) Remove the screw [1], and detach the
upper fixing cover [2].
F02-610-12
6) Remove the two screws [3], and detach
the upper fixing web unit [4].
F02-610-13
[1]
[2]
[3]
[3]
[4]
