9.5 Detecting Jams
9.5.1 Outline
The machine is equipped with the following jam sensors:
• Inlet sensor (PS8)
• Delivery sensor (PSS3)
• Reversal jam sensor (PS2)
• Reversal timing sensor (PS1)

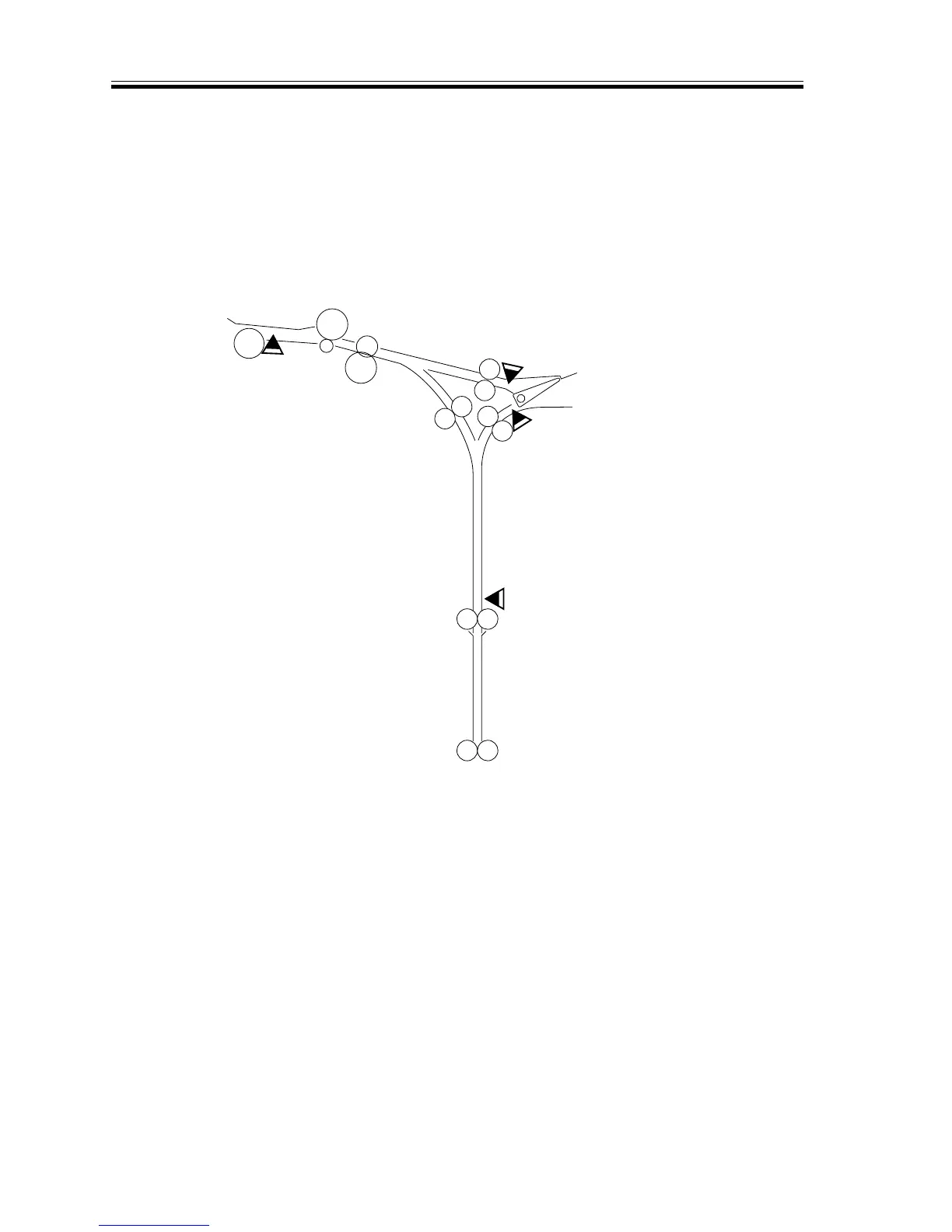

F02-905-01
The presence/absence of paper or a jam is identified in relation to the presence/absence of
paper over sensors in question at such times as stored in memory of the copier.
The machine recognizes the following two types of jams: it also identifies a jam if paper
exits over a sensor at time power on:
