Canon CLC5000 - Sequence of Operations (Multifeeder Pickup)

2-95
CHAPTER 2 NEW FUNCTIONS
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON CLC5000 REV.0 JAN. 2001

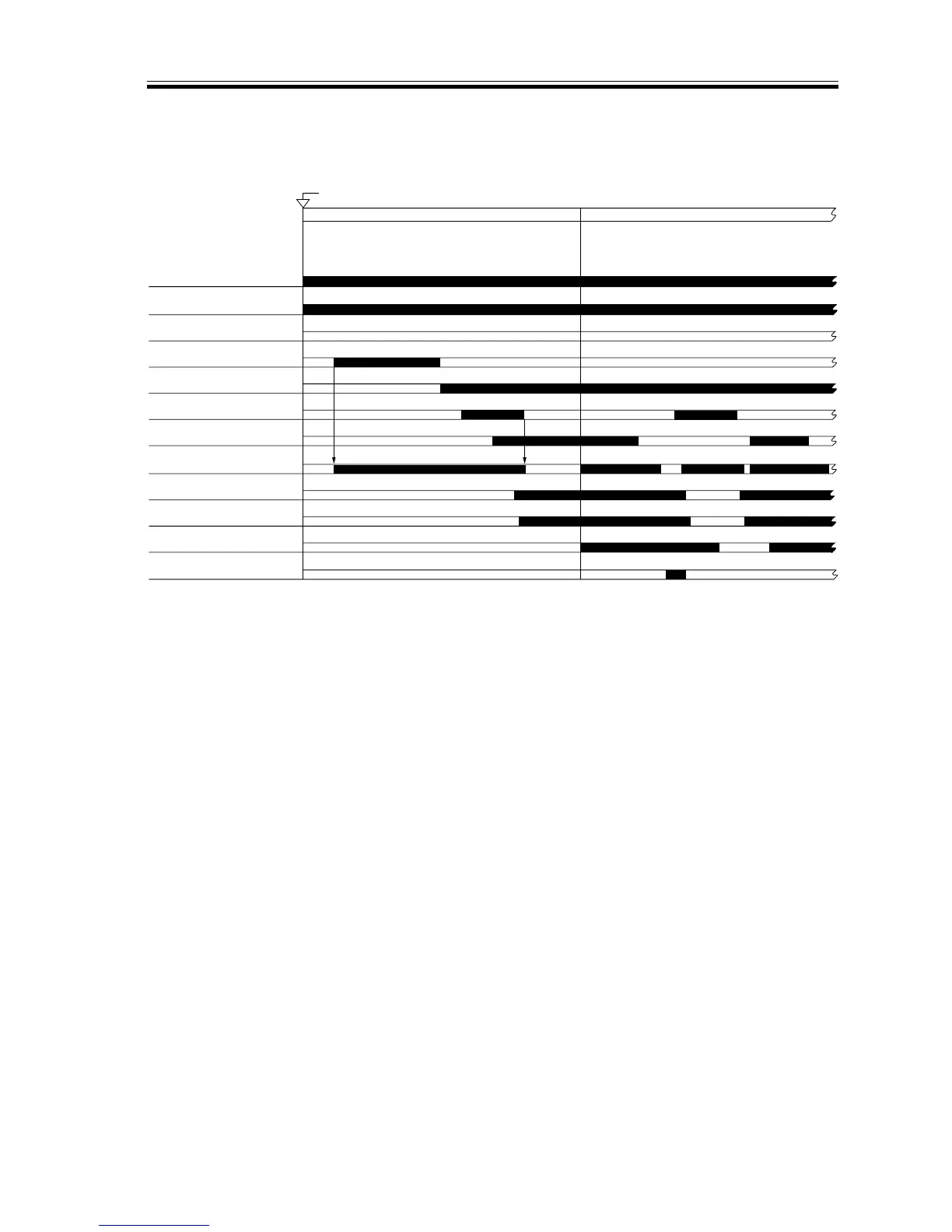

5.4.2 Sequence of Operations (multifeeder pickup)
Multifeeder, A4/LTR, 2 Sheets, Continuous, 4-Color, Direct
F02-504-02
Start key ON
CNTR
COPY
Photosensitive drum motor
(M21)
Multifeeder pickup motor
(M10)
Multifeeder paper sensor
(PS4/PS5)
Multifeeder lifter motor (M1)
Multifeeder lifter sensor
(upper: PS2)
Multifeeder pickup roller
releasing solenoid (SL5)
Paper thickness detecting
roller clutch (CL7)
Multifeeder pickup clutch
(CL6)
Registration paper sensor
(PS1)
Registration releasing
solenoid (SL16)
Transparency sensor
(OHPS)
Registration motor (M35)
