7.6.4 Drive System

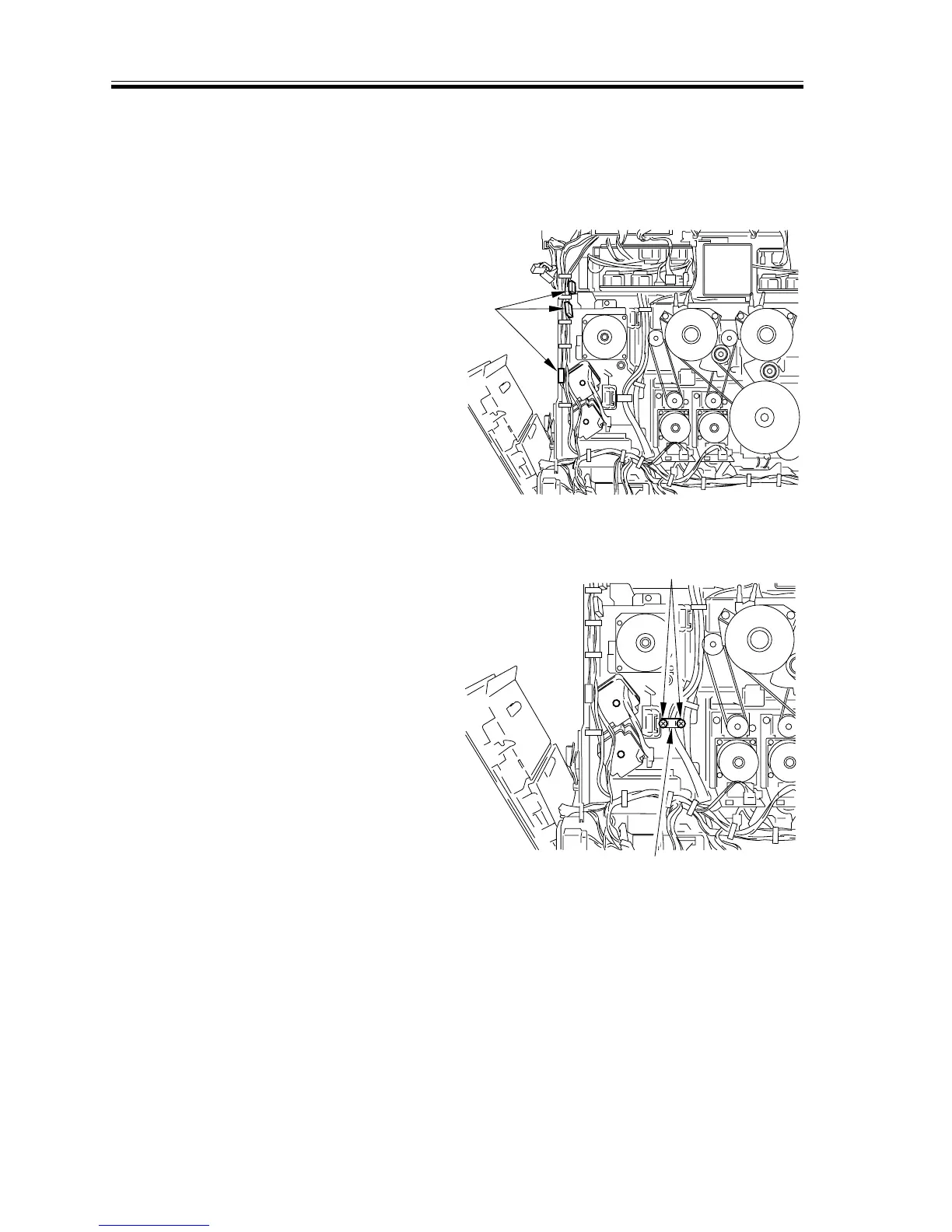

a. Removing the Registration Drive Assembly
1) Remove the rear cover (2).
2) Remove the manual feed unit.
3) Remove the DC motor driver PCB.
4) Disconnect the three connectors [1].
[1]
F02-706-53
5) Remove the two screws [2], and detach
the harness retainer [3].
[2]
[3]
F02-706-54
