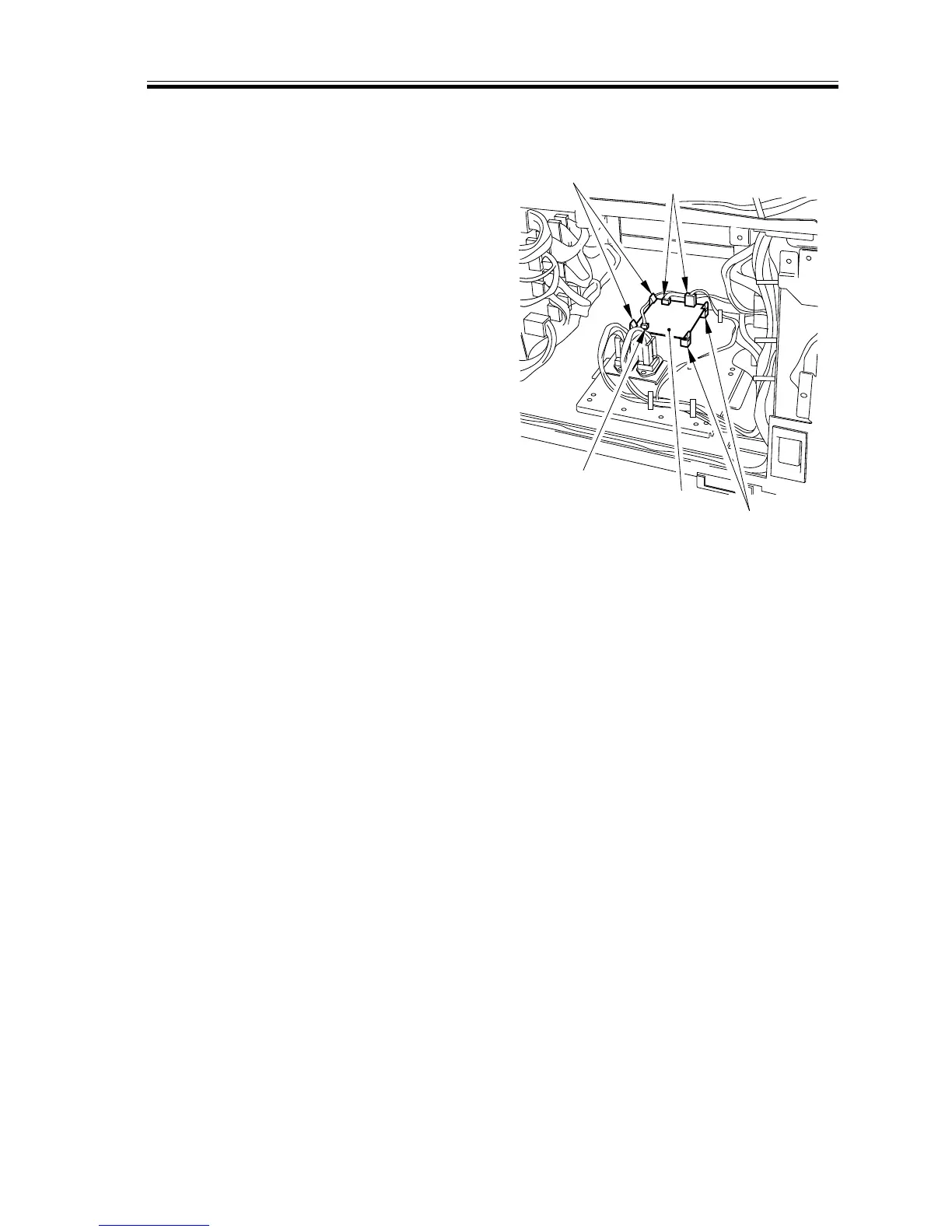

m. Removing the Flicker Controller PCB
1) Remove the rear cover (3).
2) Disconnect the three connectors [1], and
remove the four PCB retaining clips [2];
then, detach the flicker controller PCB
[3].
[1]
[1]
[2]
[3]
[2]
F02-706-52
