Canon CLC5000 - Points to Note When Installing the Photosensitive Drum

COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON CLC5000 REV.0 JAN. 2001
CHAPTER 5 TROUBLESHOOTING IMAGE FAULTS/MALFUNCTIONS
5-22

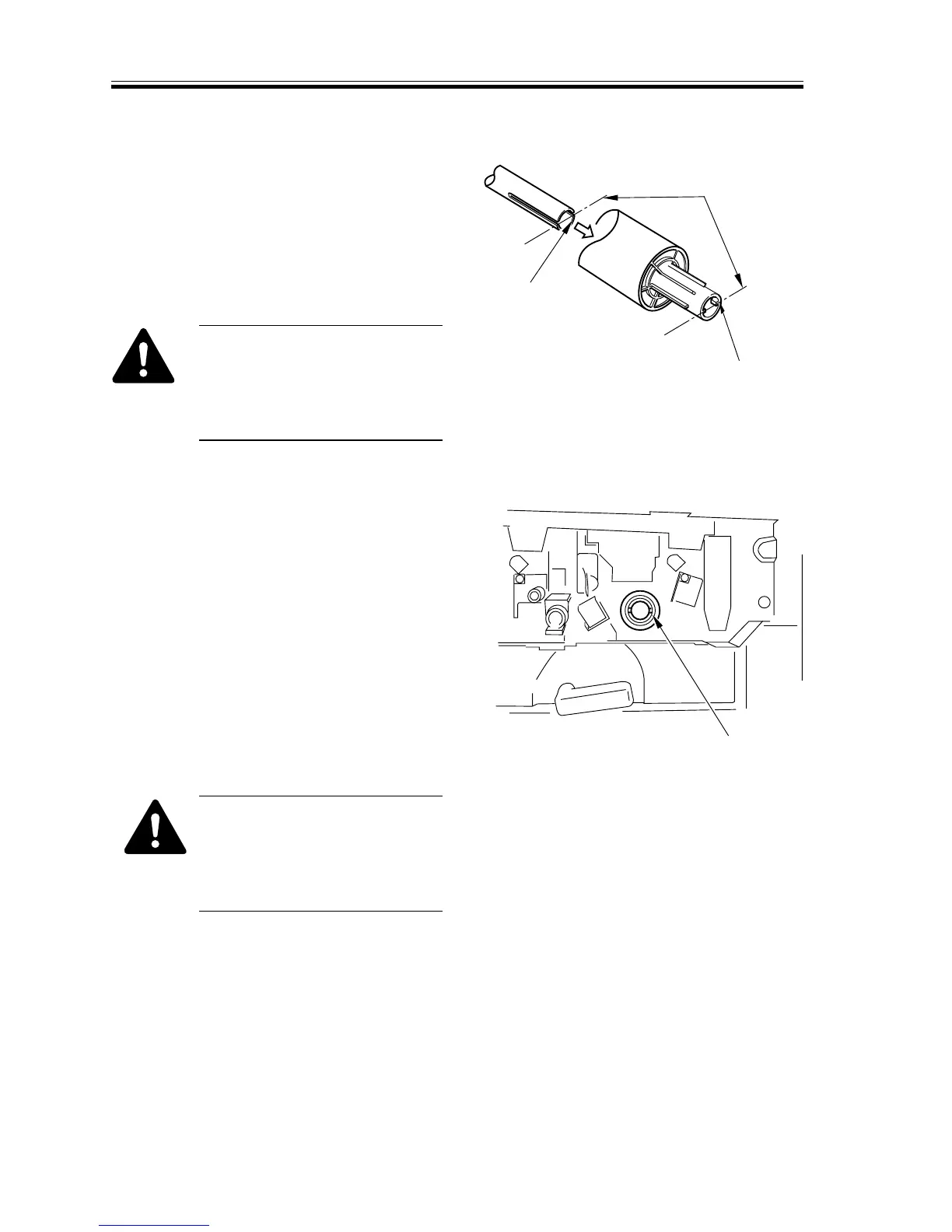

2.3.2 Points to Note When Installing the Photosensitive Drum
• Make sure that the direction of the
two bosses [1] on the flange shaft of
the photosensitive drum and the di-
rection of the slits [2] in the drum
shaft match.
To rotate the photosensitive
drum, be sure to do so while
lifting the process unit so that it
is away from the drum. (to
avoid damage to the drum)
F05-203-03
F05-203-04
When rotating the photosensi-
tive drum, be sure to hold up the
developing assembly so that it is
away from the drum to prevent
damage.
Match the slit
and the protrusion.
[2]
[1]
Slit in the
drum shaft
Boss on the
photosensitive
drum
[2]
