Canon CLC5000 - Image Position Correction Pattern (PGTYPE=07)

COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON CLC5000 REV.0 JAN. 2001
CHAPTER 5 TROUBLESHOOTING IMAGE FAULTS/MALFUNCTIONS
5-78

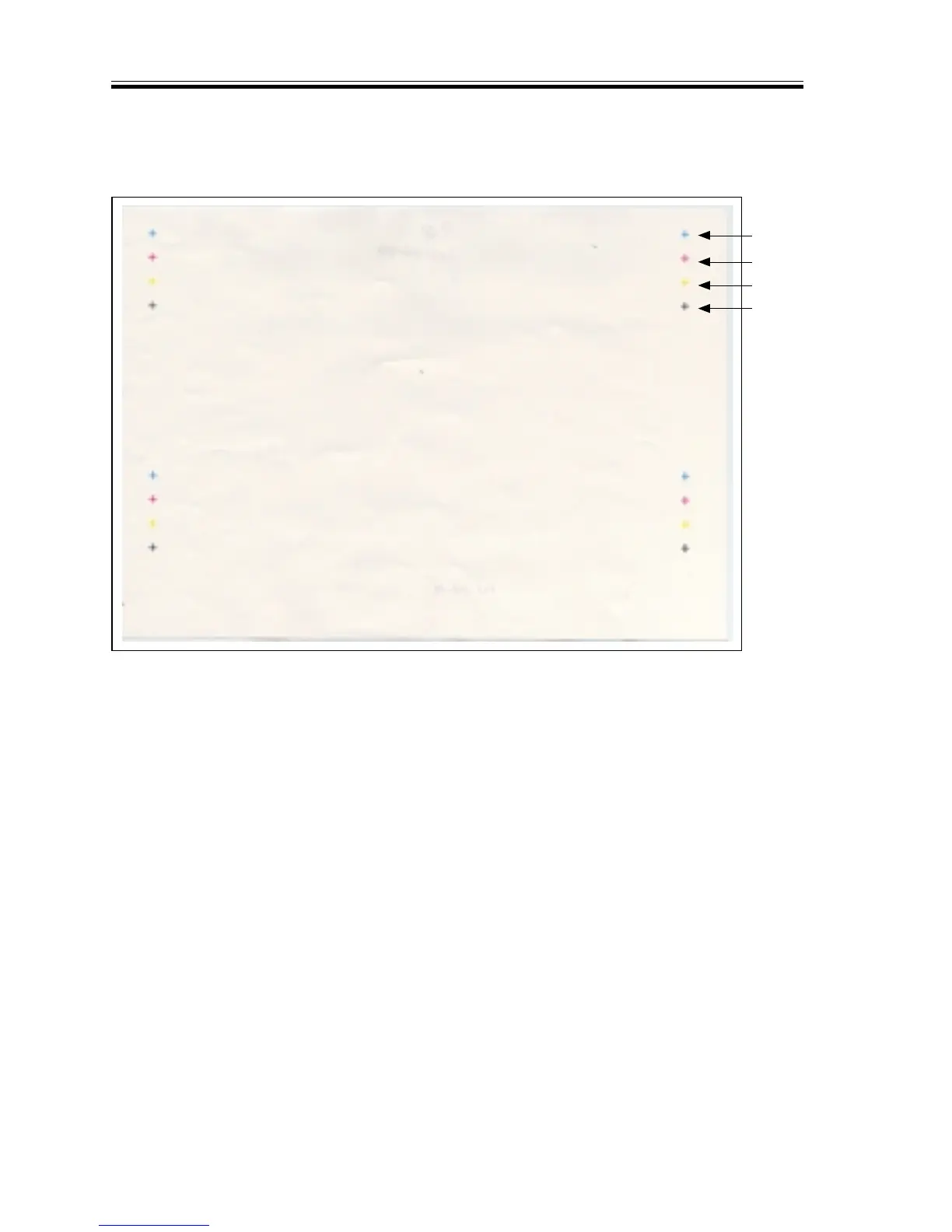

3.3.7 Image Position Correction Pattern (PGTYPE=07)
Use this test print to check whether the image position correction pattern is normal or oth-
erwise.
C pattern
M pattern
Y pattern
Bkpattern
F05-303-06
