Canon CLC5000 - 1 Exposure System

2-1
CHAPTER 2 NEW FUNCTIONS
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON CLC5000 REV.0 JAN. 2001
1 Exposure System
1.1 Outline of the Original Exposure System
The machine’s exposure system is designed on the reader scanner of the CLC1100 Series
machines.

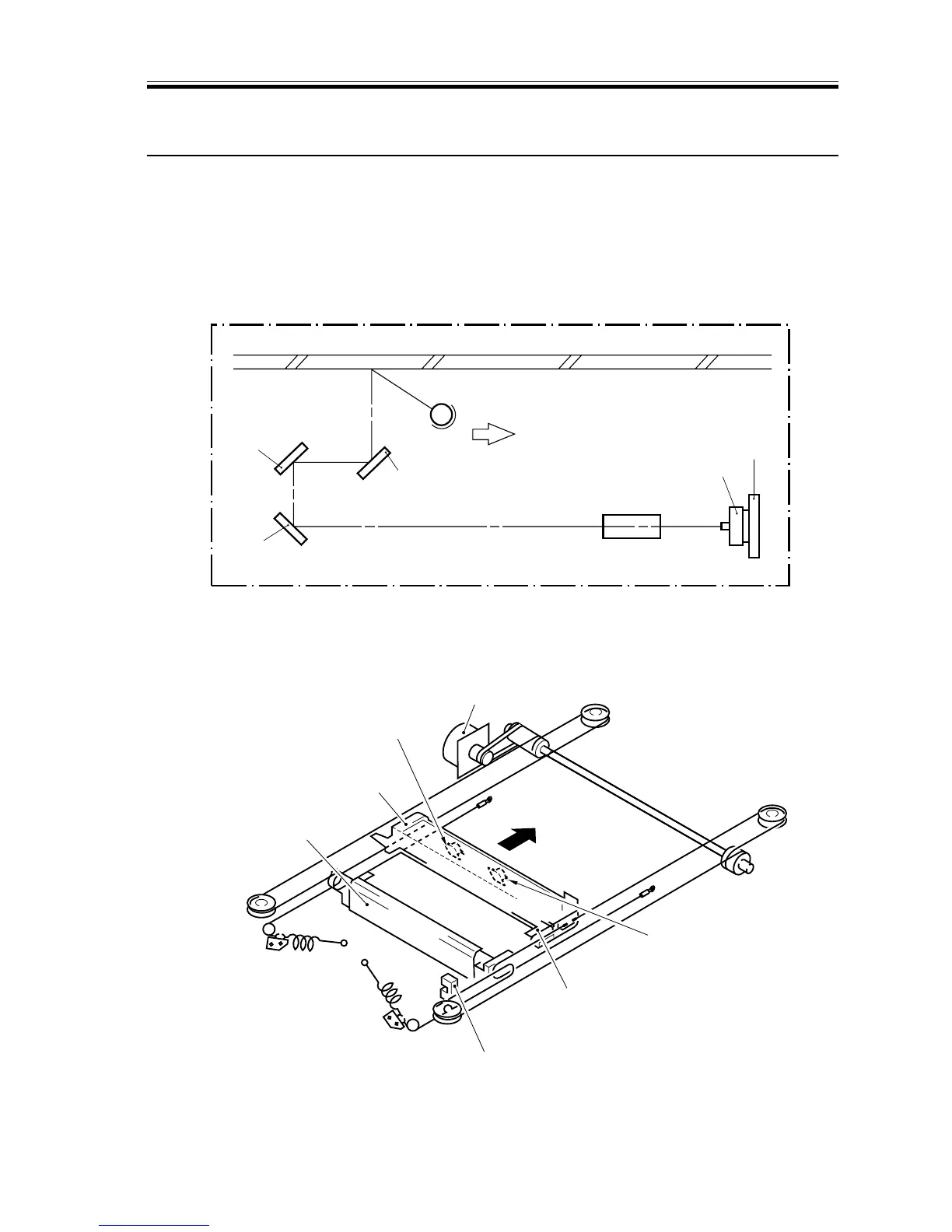

F02-101-01 shows a block diagram of the machine’s exposure system, and F02-101-02
shows its external view.
F02-101-01
F02-101-02
CCD
Exposure system
No. 2 mirror
No. 3 mirror
No. 1 mirror
Scanning lamp
(forward)
Lens
CCD driver
Scanner motor
(M29)
Scanner thermal switch 1
(TP4)
Scanner thermal switch 2
(TP5)
No. 1 mirror base
No. 2 mirror base
(forward)
Scanner home position sensor
Signal plate
