Canon CLC5000 - Sequence of Operations

2-4
CHAPTER 2 NEW FUNCTIONS
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON CLC5000 REV.0 JAN. 2001
1.3.2 Sequence of Operations

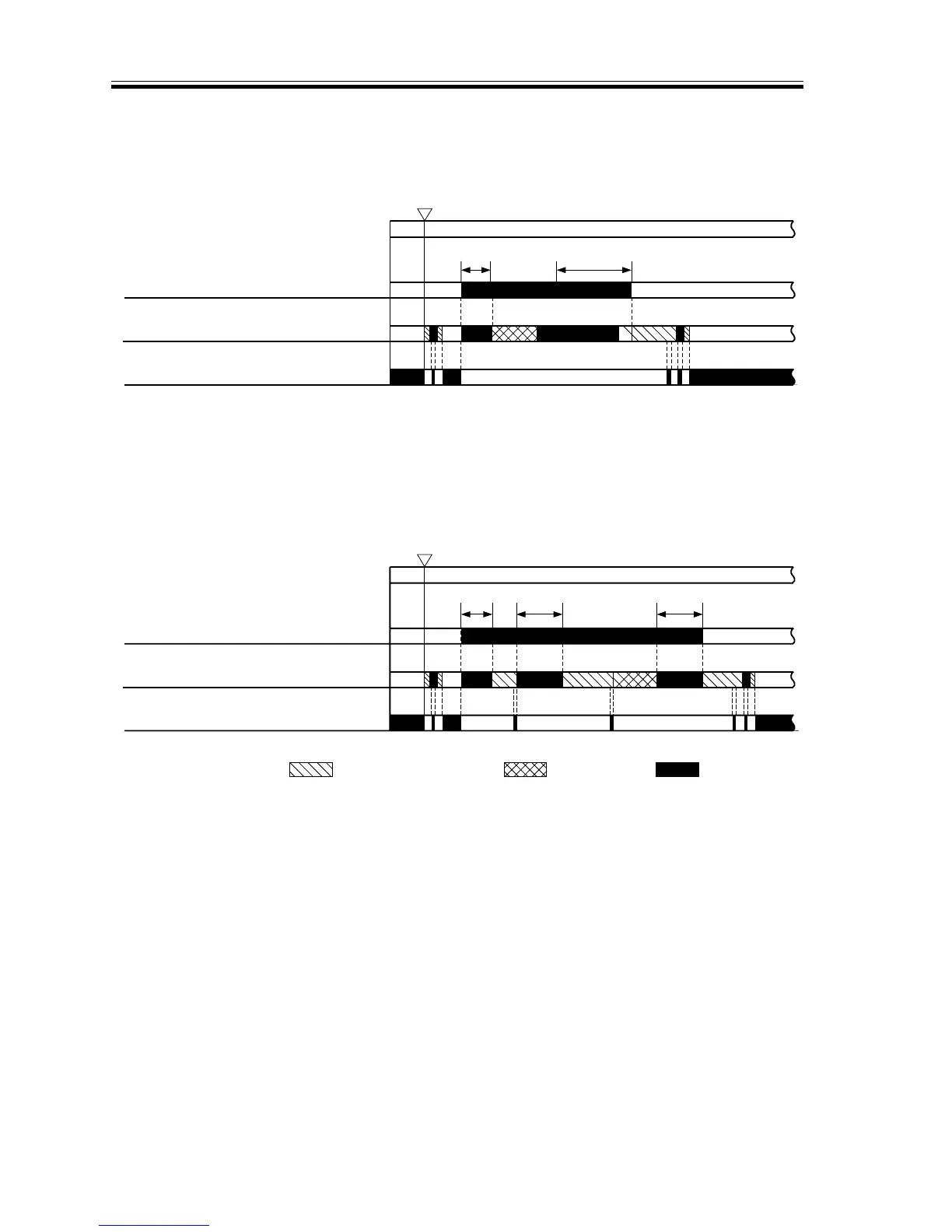

F02-103-02
Scanning lamp
Scanner motor (M29)
Original scanner HP sensor (PS37)
Start key ON
CNTR
Scanning lamp
Scanner motor (M29)
Scanner HP sensor (PS37)
Start key ON
CNTR
standard
rotation
high-speed
rotation
reverse
(scanner in reverse)
• Without Pre-Scanning (if original detection OFF, ACS off, APS OFF)
• With Pre-Scanning (single scan over original; standard mode)
[A]
[A]
[C]
[C][B]
[A]:shading corection.
[B]:original position identification, black original identification, AE measurement
[C]:original scan
