Canon CLC5000 - Sequence of Operations

2-153
CHAPTER 2 NEW FUNCTIONS
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON CLC5000 REV.0 JAN. 2001

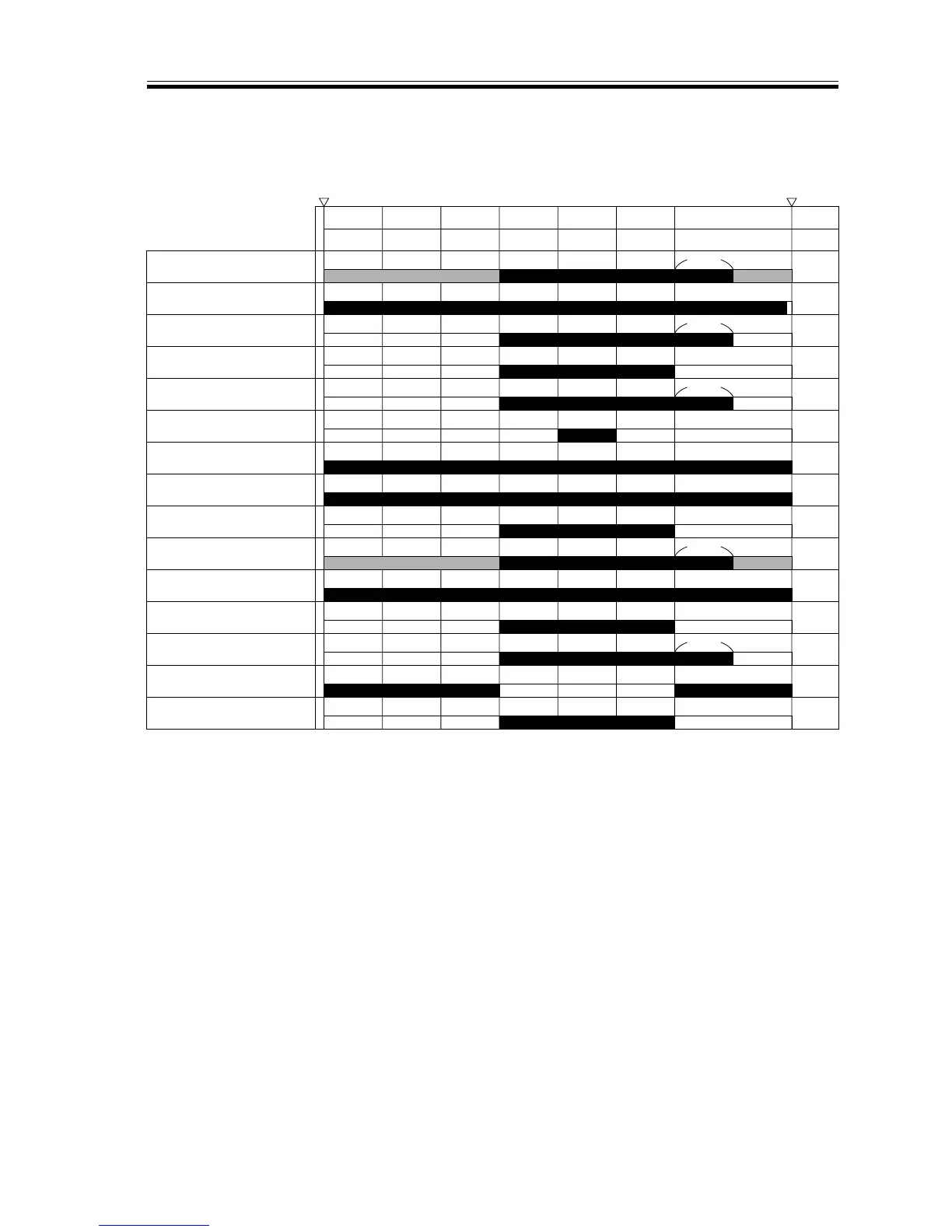

7.3.3 Sequence of Operations
Delivery assembly exhaust
fan (FM1/2/3)
Laser cooling fan (FM4/FM5)
Primary exhaust fan (FM6)
Pre-fixing feeding fan (FM7)
Primary suction fan
(FM8/FM9)
Reader assembly suction fan
(FM12/FM13)
Digital unit cooling fan
(FM14/FM15/FM16)
Power supply exhaust fan
(FM17/FM18)
General exhaust fan
(FM19/FM20/FM27)
Delivery lower cooling fan
(FM21/FM22/FM23)
Laser scanner motor cooling
fan (FM24)
Pickup cooling fan
(FM26/FM32)
Reversing assembly exhaust
fan (FM28/FM29/FM30/FM33)
Fixing heat discharge fan
(FM31)
Pre-fixing exhaust fan
(FM35/FM36)
Power switch
ON
Power switch
OFF
INTR CNTR COPY LSTR STBYSTBYWMUP
Half-speed Half-spedFull-speed 4 min
Half-speed
Half-sped
Full-speed 4 min
Full-speed 4 min
Full-speed 4 min
Full-speed 4 min
F02-703-02
