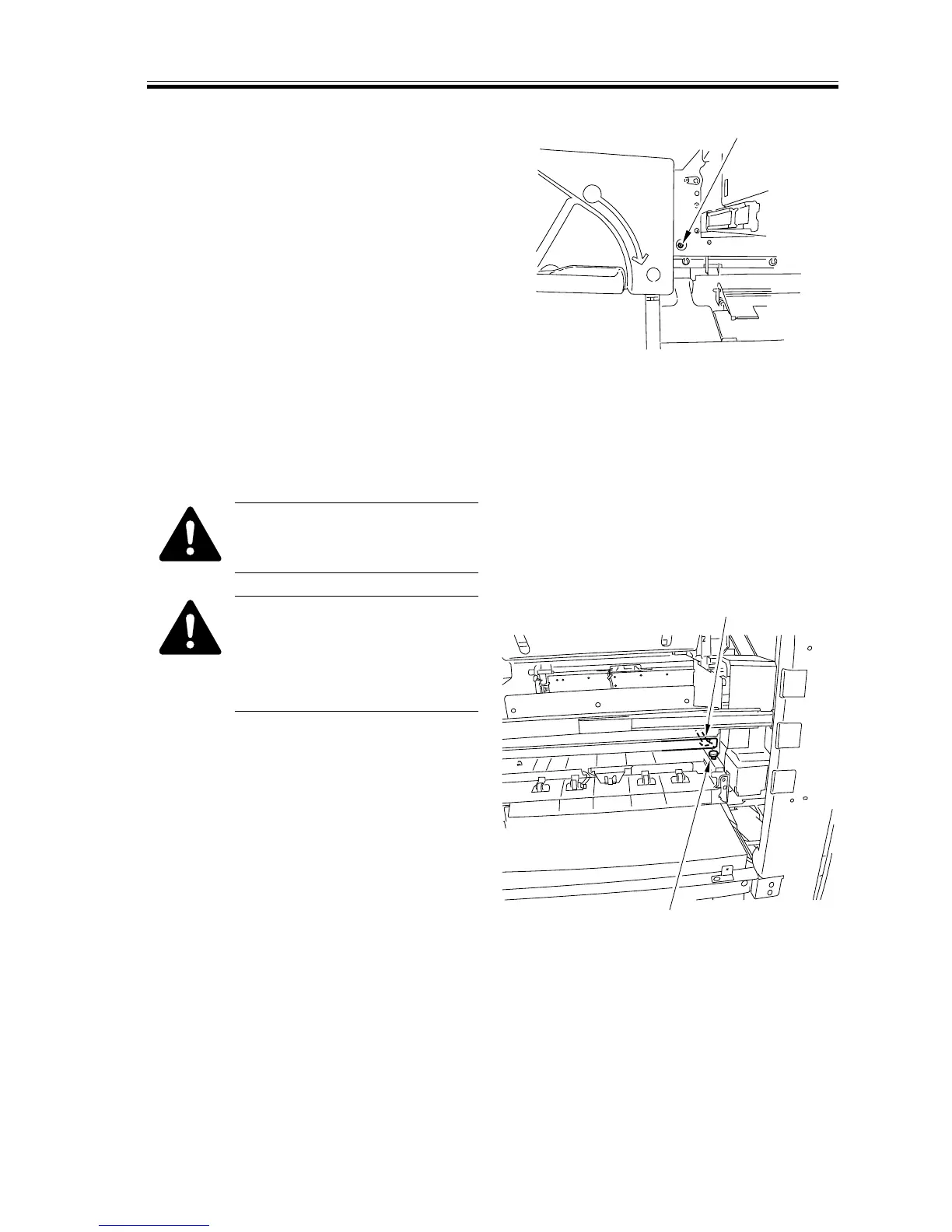

8) Slide out the transfer unit, and remove
the screw [10].
F02-507-21
9) Move the pre-duplex feeding assembly
to the front once; then, slide it back to-
ward the delivery side to detach.
When Removing
When removing it, be sure to
keep the duplex unit slid out.
When Mounting
When mounting it, be sure to
hook the stepped screw [11]
show in the figure on the groove
[12] in the frail.
F02-507-22
[10]
[12]
[11]
