CAPINTEC, INC. CRC
®
-25R
FUSE SERVICING
Readout Fuses
CAUTION: FOR CONTINUED PROTECTION, REPLACE ONLY WITH SAME
TYPE AND RATING OF FUSE(S). A FIRE HAZARD MAY EXIST IF
THE WRONG SIZE OF FUSE IS INSTALLED.
Two fuses are located in the power entry module next to the power cord connector on the
back panel of the Readout Unit. These fuses are rated at 2.0A 250Vac delayed type as
specified on the label located directly below the power entry module.
To change these fuses:
1. Turn off the CRC
®
-25R power switch and unplug the line cord from the power entry
module.
2. Insert the tip of a small flat bladed screwdriver into the notch of the power entry
module just to the left of the switch. Twist the screwdriver to open the fuse cover door.
(Refer to Figure 15-2 Readout Fuse Replacement).
3. To remove the first of the two fuse carriers, insert the tip of the screwdriver behind the
arrow and pull it out. Repeat this process for the second fuse.
4. Remove the blown fuse(s) from the carrier and replace it (them) with T 2.0AL 250 Volt
fuse(s).
5. Re-insert the fuse carriers with the arrows pointing up.

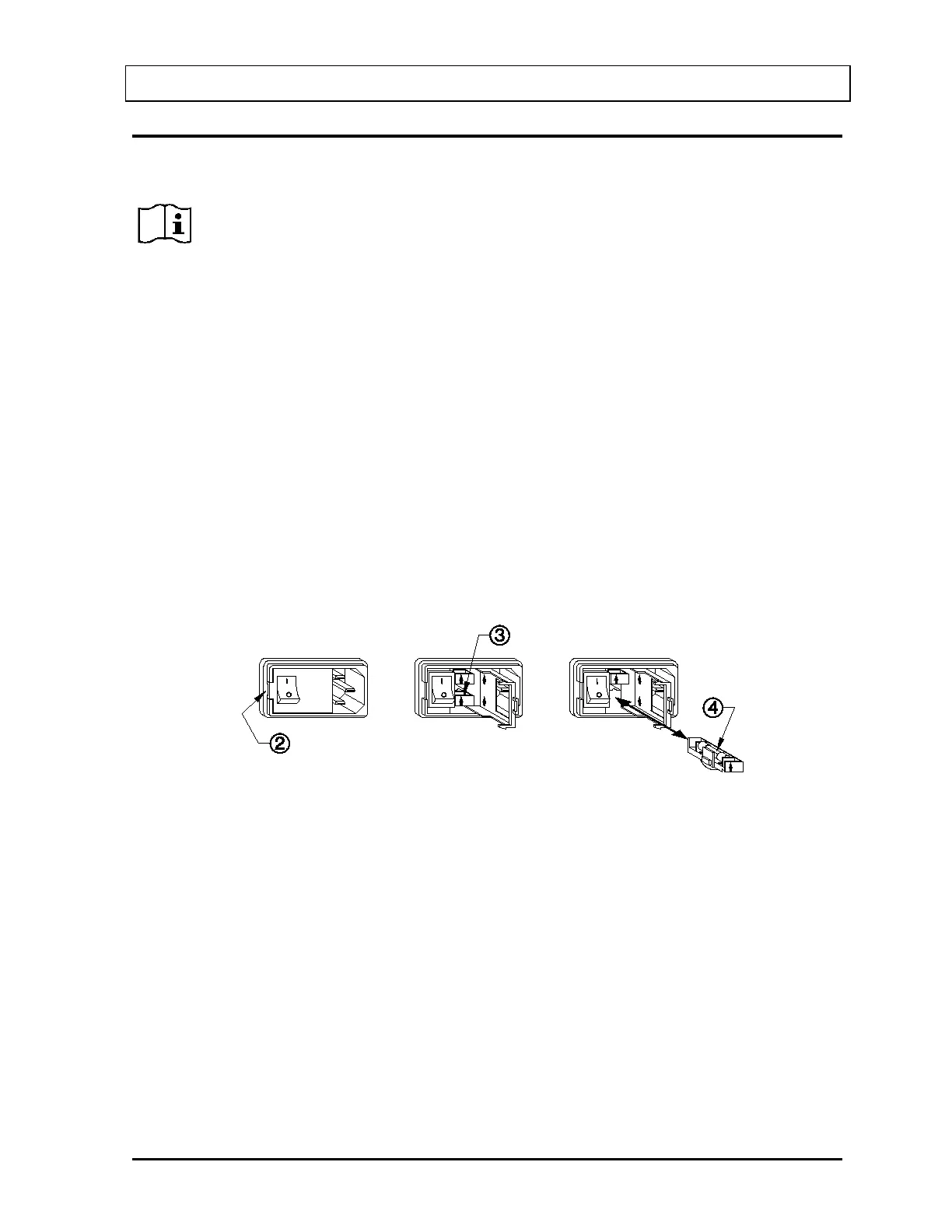

Figure 15-2 Readout Fuse Replacement
6. Close the fuse cover door and snap it into place.
7. Replace the line cord and turn on the power switch for the CRC
®
-25R.
8. Verify the CRC
®
-25R System is functioning correctly by performing the Daily Test as
specified in CHAPTER 7: ACCEPTANCE & QUALITY ASSURANCE TESTS.
Printer Fuse
The printer fuse is not accessible from the outside of the printer case and must be replaced
by a qualified service representative.
March 15 CLEANING AND MAINTENANCE 15 - 5
