19.3.2 Quick Reference: Connecting to Encore
19.3.3 Connecting to an Encore Main Station
Notes: The following procedure assumes that a two-wire interface module has been fitted to the
HMS-4X Main Station. For more information about interface modules, see HMS-4X
Main Station rear panel: Interface modules
A HelixNet system with HLI-2W2 must be able to receive power from an analog
Partyline
To connect your HelixNet Partyline system to an Encore Main Station (for example, the four
Channel MS-704):
1. On the HMS-4X Main Station, configure the Module Settings for the two-wire interface
module (Menu mode > Module Settings). For the full procedure, see Configuring a Two-wire
interface module
Note: Check that the two-wire module is configured for Clear-Com systems (the
default) and run the Auto-null. Auto-nulling helps to reduce echo while talking on a
two-wire audio system. You must run auto-null every time you change the cabling.

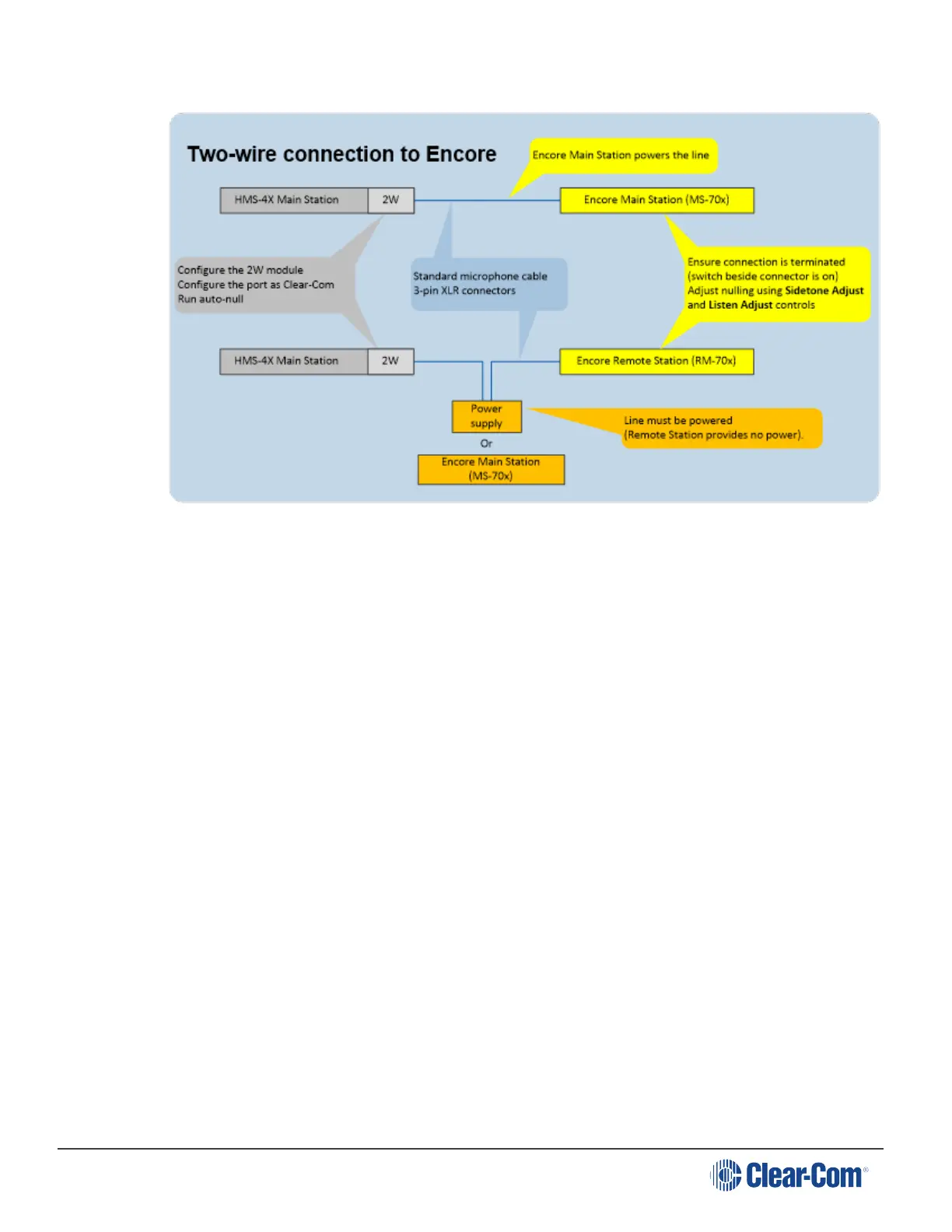

2. Physically connect the HMS-4X Main Station to the Encore Main Station, using the 3-pin XLR
connectors:
l On the HMS-4X Main Station two-wire interface module.
l On the back panel (rear) of the Encore Main Station.
