HelixNet | User Guide

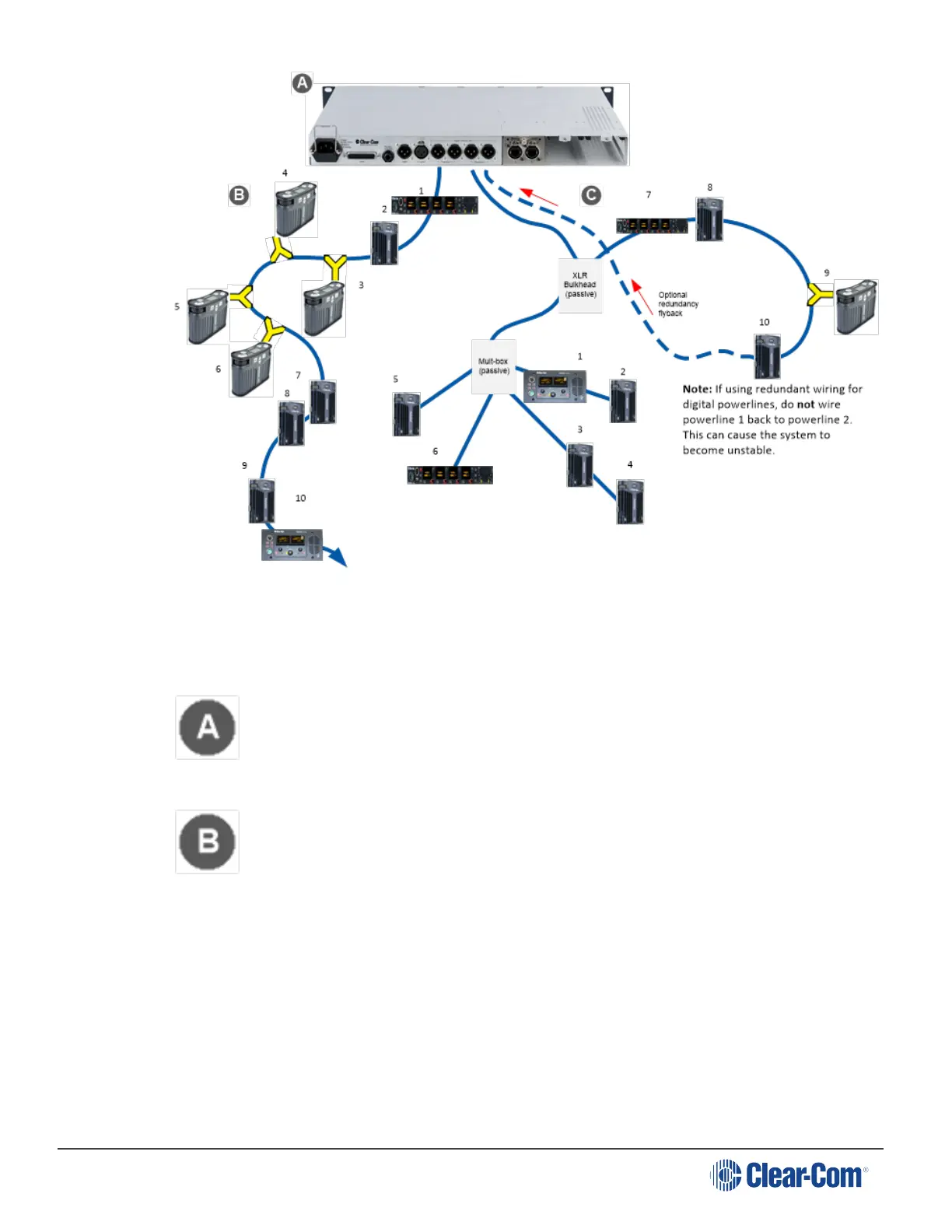

Key to example system topologies (layouts) diagram
Feature Description
HMS-4X Main Station (digital Main Station) (rear panel).
There are two lines (digital Partylines) on the Main Station, each of which can support
up to 10 digital beltpacks. There are two connectors (3-pin XLR, male and female) for
each line.
Daisy chained beltpacks. To create a ‘daisy chain’ of connected beltpacks:
Connect the first beltpack to the Main Station, using either of the 3-pin XLR connectors
(female or male) on the base of the beltpack.
Pass on the connection to the second beltpack, using the remaining connector as the
pass through.
Repeat for all beltpacks (up to 10) in the chain. No cable termination is required.
Note: For the HXII-BP-X4 beltpacks, you must use a passive Y splitter.
You can locally power an HRM or HKB within a daisy chain. This prevents the normal
draw off the powerline by the locally powered device.
