Horizon Imager User’s Manual 10-7
Preventive Maintenance

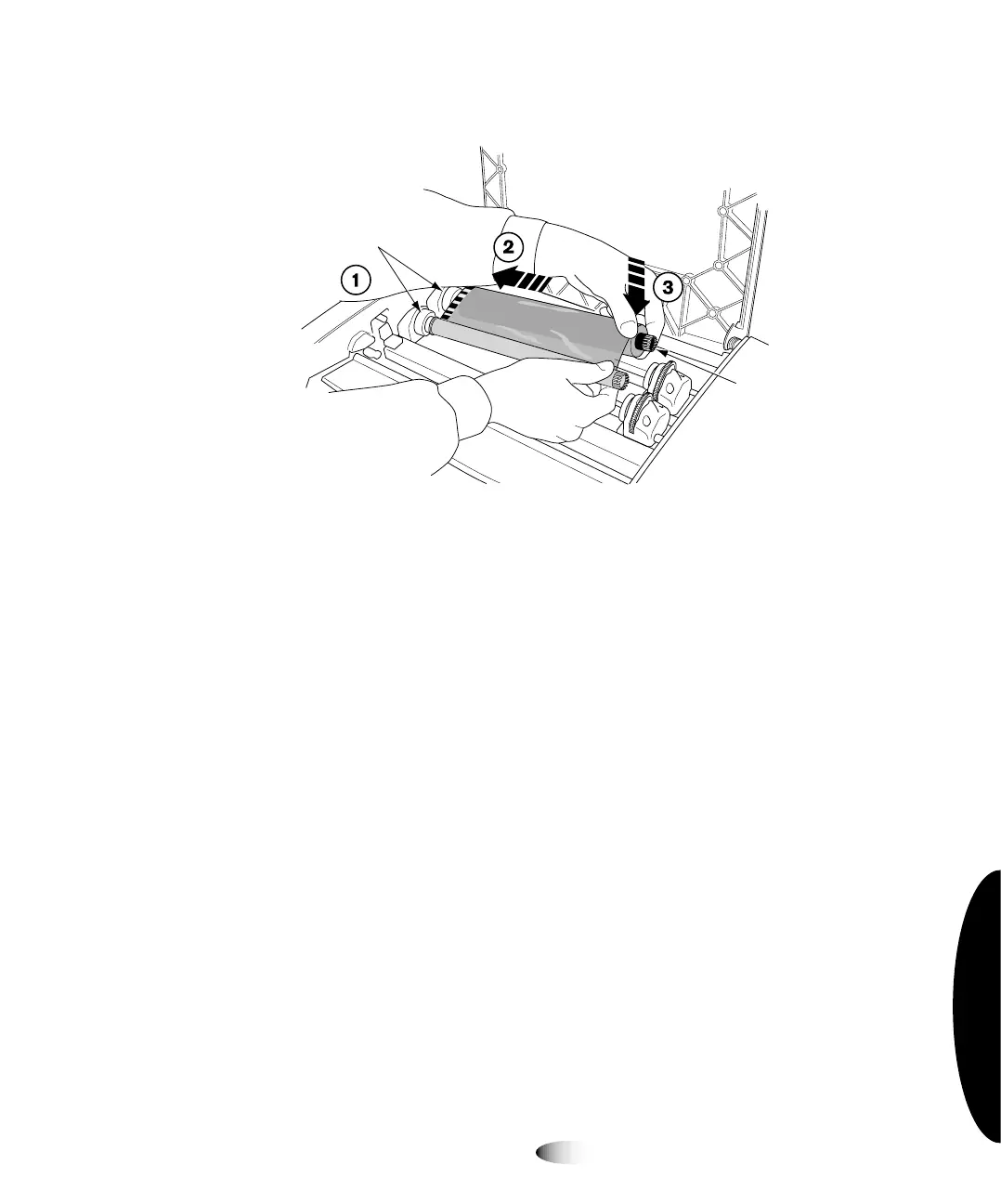

12. Reload the ribbon, as shown in the following figure.
13. Close the top cover.
After a few seconds, the Status screen displays and printing
resumes if jobs are queued.
Spring-loaded
spindles
Black takeup
spool
towards rear
