xStack® DES-3528/DES-3552 Series Layer 2 Stackable Fast Ethernet Managed Switch Web UI Reference Guide

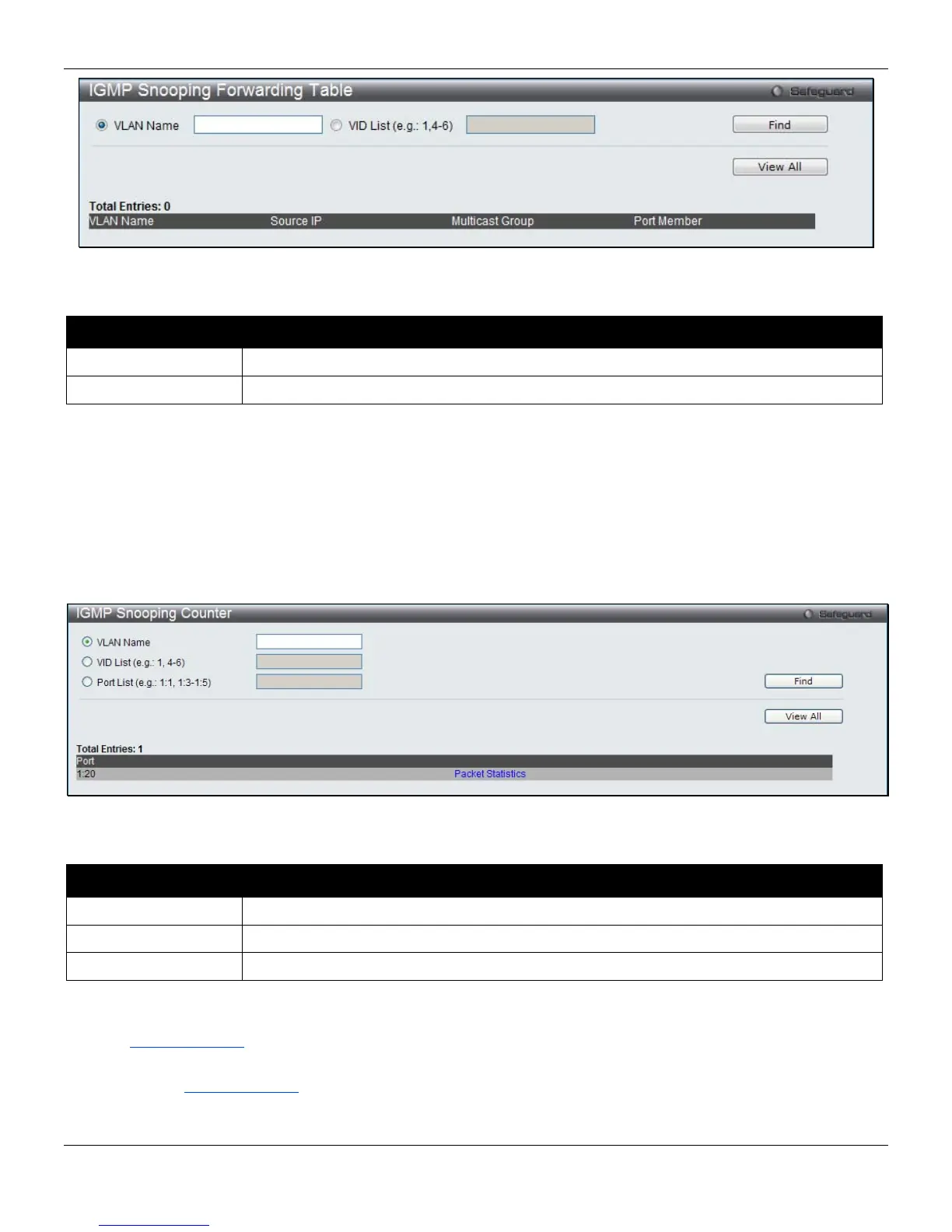

Figure 4-50 IGMP Snooping Forwarding Table window
The fields that can be configured are described below:
Parameter Description
VLAN Name
The VLAN Name of the multicast group.
VID List
The VLAN ID list of the multicast group.
Click the Find button to locate a specific entry based on the information entered.
Click the View All button to display all the existing entries.
IGMP Snooping Counter
Users can view the Switch’s IGMP Snooping counter table.
To view the following window, click L2 Features > L2 Multicast Control > IGMP Snooping > IGMP Snooping
Counter, as shown below:
Figure 4-51 IGMP Snooping Counter window
The fields that can be configured are described below:
Parameter Description
VLAN Name
The VLAN Name of the multicast group.
VID List
The VLAN ID list of the multicast group.
Port List
The Port List of the multicast group.
Click the Find button to locate a specific entry based on the information entered.
Click the View All button to display all the existing entries.
Click the Packet Statistics
link to view the IGMP Snooping Counter Table.
After clicking the Packet Statistics
link, the following page will appear:
