xStack® DES-3528/DES-3552 Series Layer 2 Stackable Fast Ethernet Managed Switch Web UI Reference Guide
CFM Loopback Settings
This window is used to configure the CFM Loopback settings on the Switch.
To view this window, click OAM > CFM > CFM Loopback Settings, as shown below:

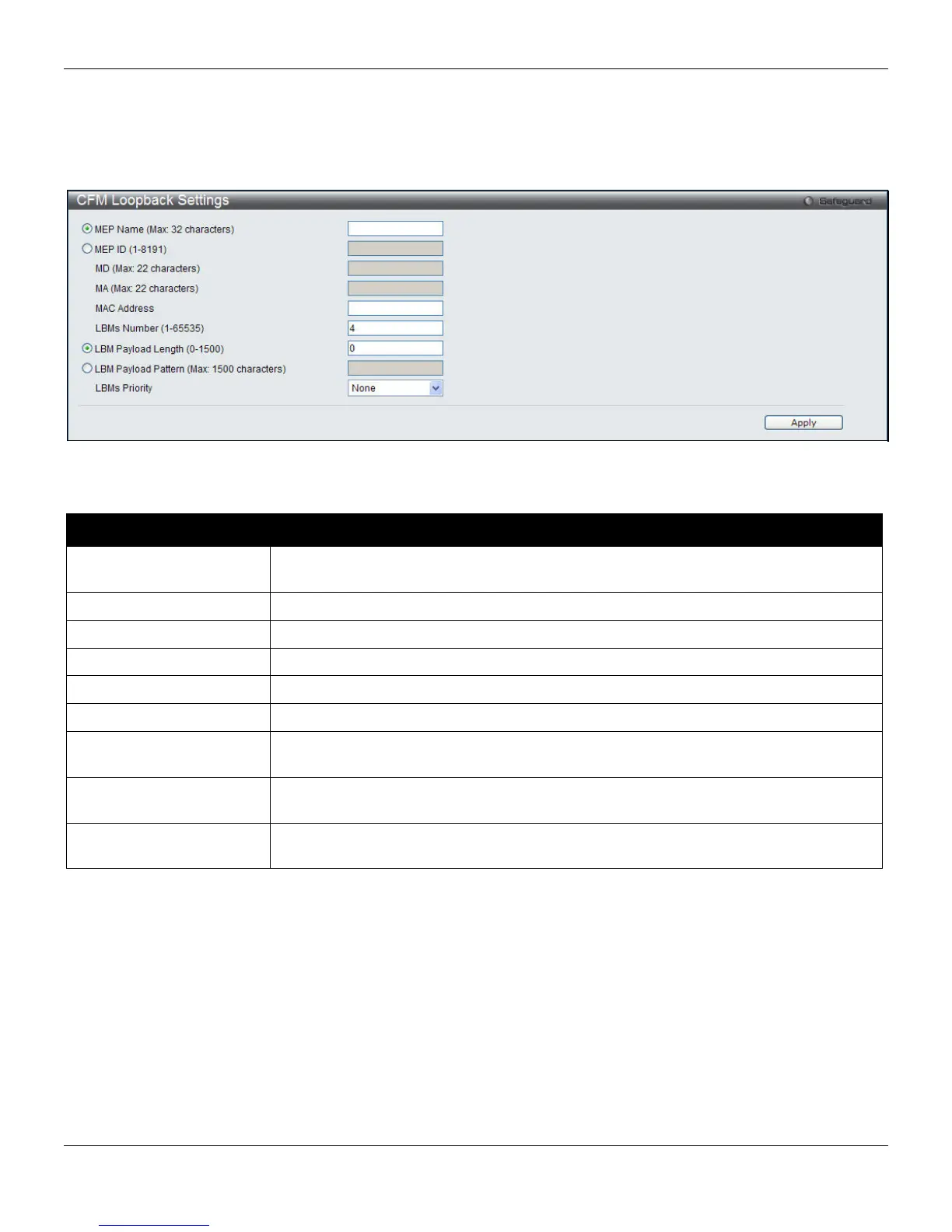

Figure 10-9 CFM Loopback Settings window
The fields that can be configured are described below:
Parameter Description
MEP Name (Max:32
characters)
The name of the Maintenance End Point.
MEP ID (1-8191)
The ID for the Maintenance End Point between 1 and 8191.
MD (Max: 22 characters)
The Maintenance Domain Name.
MA (Max: 22 characters)
The Maintenance Association Name.
MAC Address
The destination MAC address.
LBMs Number (1-65535)
The number of LBMs to be sent the default value is 4.
LBM Payload Length (0-
1500)
The payload length of the LBM to be sent, the default value is 0.
LBM Payload Pattern
(Max: 1500 characters)
The arbitrary amount of data to be included in a Data TLV, along with the indication of
whether the Data TLV is to be included.
LBMs Priority
The 802.1p priority to be set in the transmitted LBMs. If not specified it uses the same
priority as CCMs and LTMs sent by the MEP.
Click the Apply button to implement the changes made.
