Adding an IPv6 ACL Profile
The window shown below is the Add ACL Profile window for IPv6. To use specific filtering masks in this ACL profile,
click the packet filtering mask field to highlight it red. This will add more filed to the mask.
After clicking the Add ACL Profile button, the following page will appear:

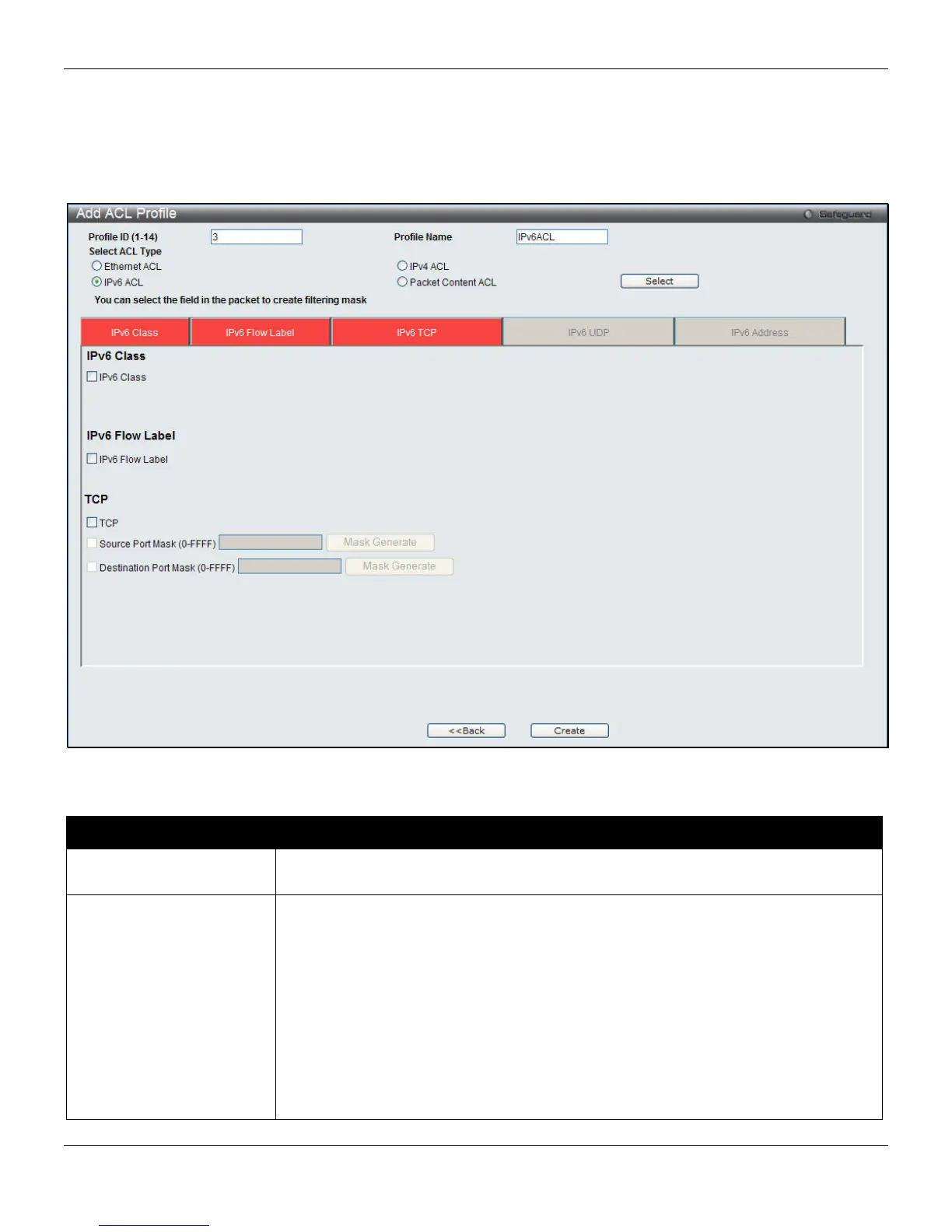

Figure 7-13 Add ACL Profile window (IPv6 ACL)
The fields that can be configured are described below:
Parameter Description
Profile ID
Enter a unique identifier number for this profile set. This value can be set from 1 to
14.
Select ACL Type
Select profile based on Ethernet (MAC Address), IPv4 address, IPv6 address, or
packet content. This will change the window according to the requirements for the
type of profile.
Select Ethernet ACL to instruct the Switch to examine the layer 2 part of each packet
header.
Select IPv4 ACL to instruct the Switch to examine the IPv4 address in each frame's
header.
Select IPv6 ACL to instruct the Switch to examine the IPv6 address in each frame's
header.
Select Packet Content ACL to instruct the Switch to examine the packet content in
each frame’s header.
