UMN:CLI User Manual

V8102

370

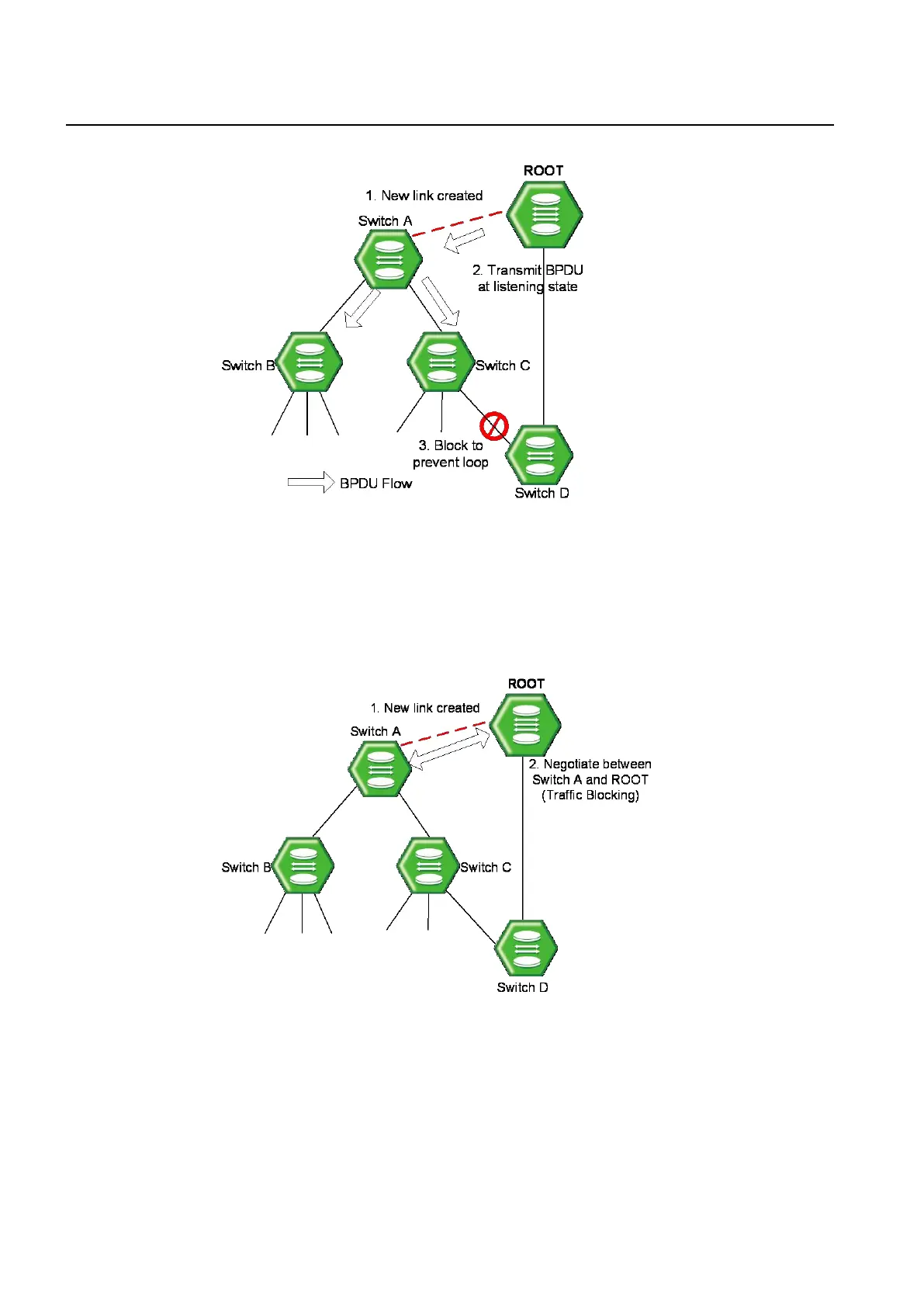

Fig. 9.26 Convergence of 802.1d Network

This is a very epochal way of preventing a loop. The matter is that communication is

SWITCH D and SWITCH C is blocked. Then, right after the connection, it is possible to

transmit BPDU although packets can not be transmitted and received between SWITCH

A and the root.

Fig. 9.27 Network Convergence of 802.1w (1)

SWITCH A negotiates with the root through BPDU. To make link between SWITCH A and

the root, the state of non-edge designated port of SWITCH C is changed to blocking. Alt-

hough SWITCH A is connected to the root, loop will not be generated because SWITCH A

is blocked to SWITCH B and SWITCH C. In this state, BPDU from the root is transmitted

to SWITCH B and SWITCH C through SWITCH A. To configure the forwarding state of

SWITCH A, SWITCH A negotiates with SWITCH B and SWITCH C.
