Dasan V8102 - Fig. 10.2 the V8102 with PIM-SM; Fig. 10.3 the V8102 with IGMP Snooping and PIM-SM

UMN:CLI User Manual
V8102
476
When installed within the Layer 3 network as a router, the V8102 should be configured
with a multicast routing protocol. However, an additional switch performing IGMP snoop-
ing is needed for subscribers in the Layer 2 network. Fig. 10.2 shows an example of the
V8102 with PIM-SM (L3 multicast routing protocol) in the Layer 3 network.

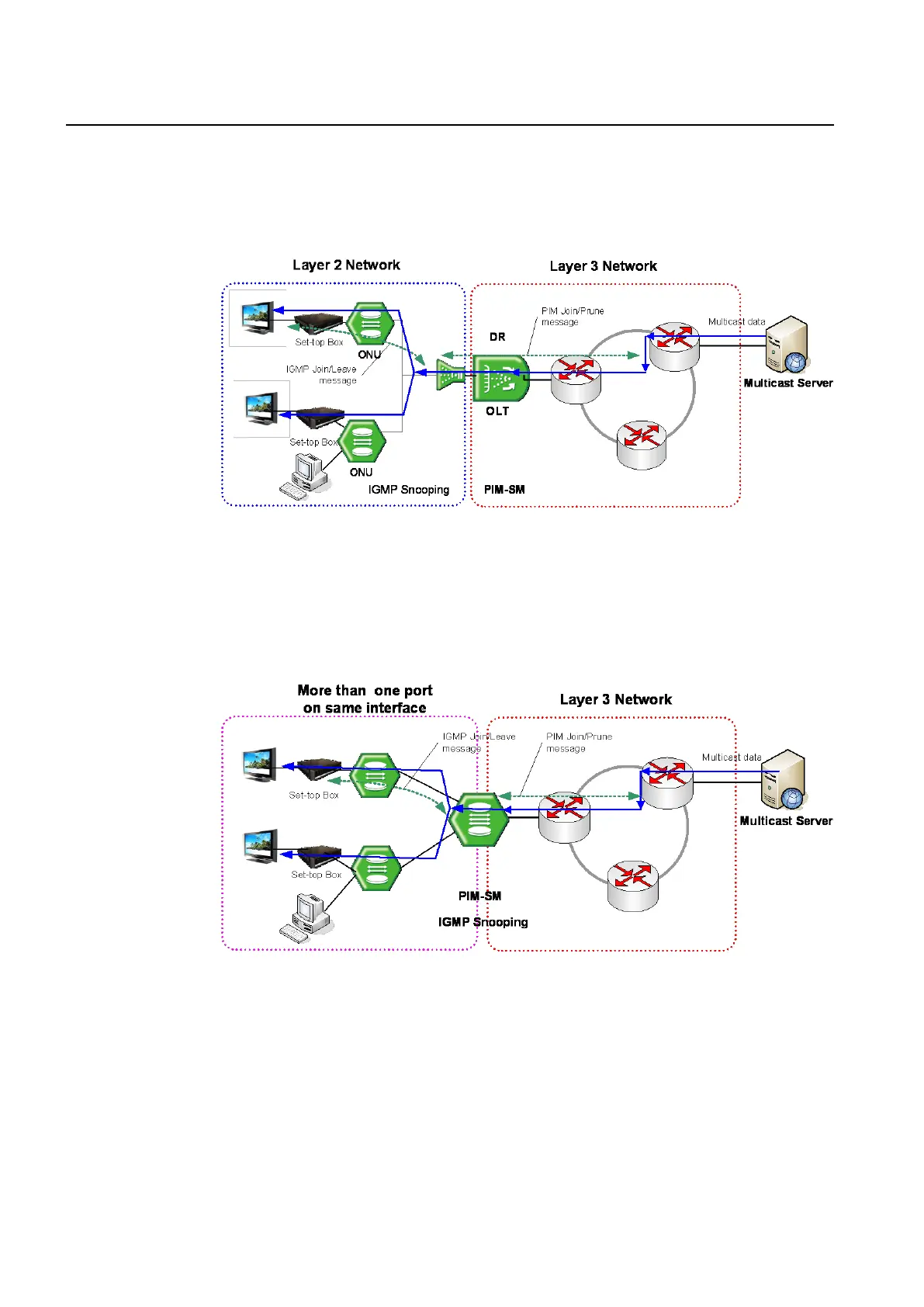

Fig. 10.2 The V8102 with PIM-SM
If more than one port are on the same Layer 2 interface and the V8102 is a border router
of the Layer 3 network, you should configure the V8102 with both IGMP snooping and
PIM-SM together. Fig. 10.3 shows the example of the multicast network with the V8102
configured with both IGMP snooping and PIM-SM.
Fig. 10.3 The V8102 with IGMP Snooping and PIM-SM
