CP60 and CP60 Plus Service Manual 5-19
Testing Motors

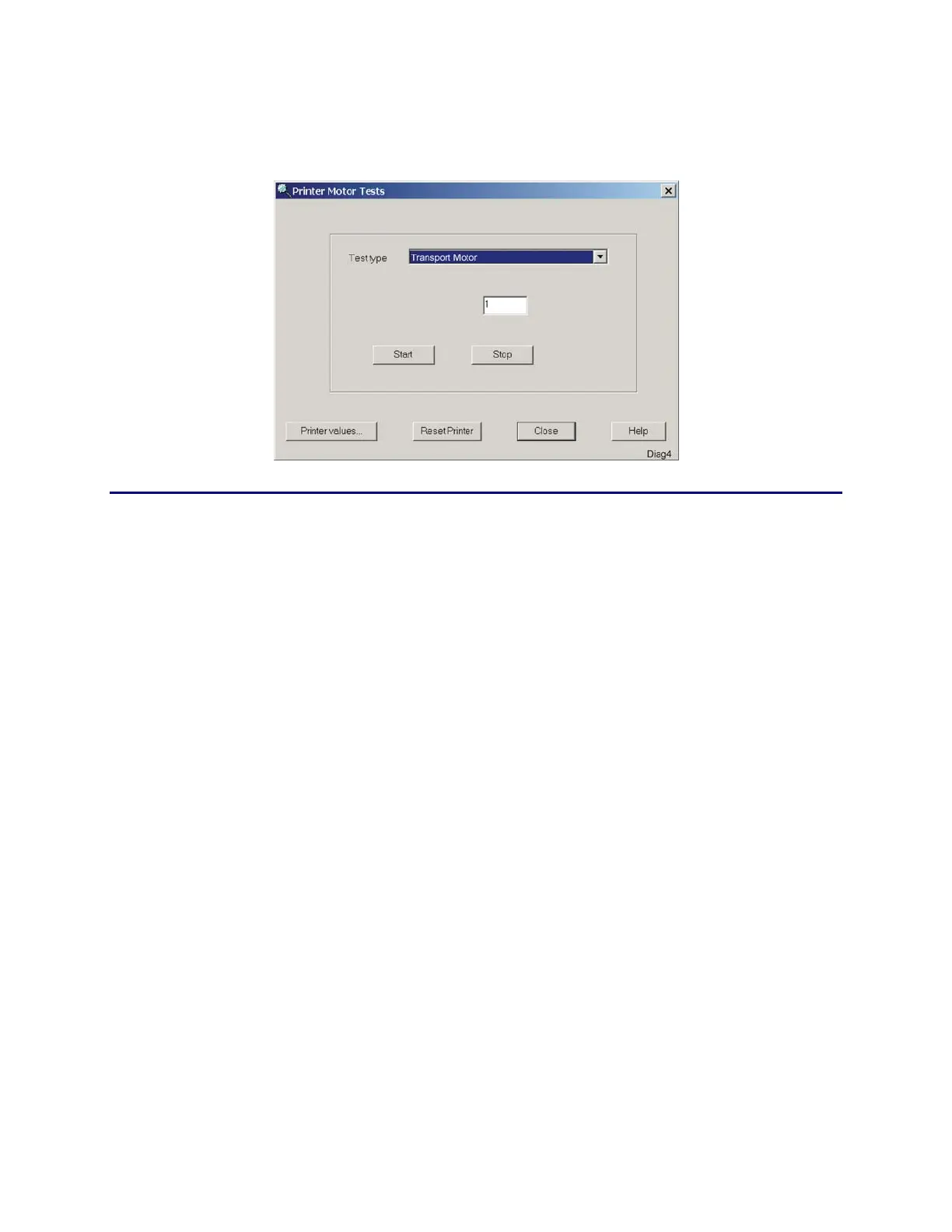

This dialog box allows you to operate each of the motors in the printer for a
specified duration.
Procedure
1. Select from this list of available motor tests:
• Transport Motor (fast, slow, forward, or reverse)
• Ribbon Motor
• Printhead Cam Motor
• Card Pick Motor (remove cards from the hopper first)
• Printhead Fan Motor (the fan cycles on and off)
2. Enter a duration in seconds (or number of cycles for the fan) in the box below
the test type selection.
3. Click Start to begin the test (Stop ends the test before it times out).
4. Click Reset Printer as it is a good practice to reset the printer before
returning to card production.
Use the Printer values button if you want to check the settings.
