6-54 Removal and Replacement
Printhead Cam
Removal Procedure
1. Unplug the printer.
2. Remove the ribbon cartridge and cleaning roller.
3. Remove the
Main Enclosure (p. 6-8).
4. Remove the
Transport Assembly from the base (p. 6-29).

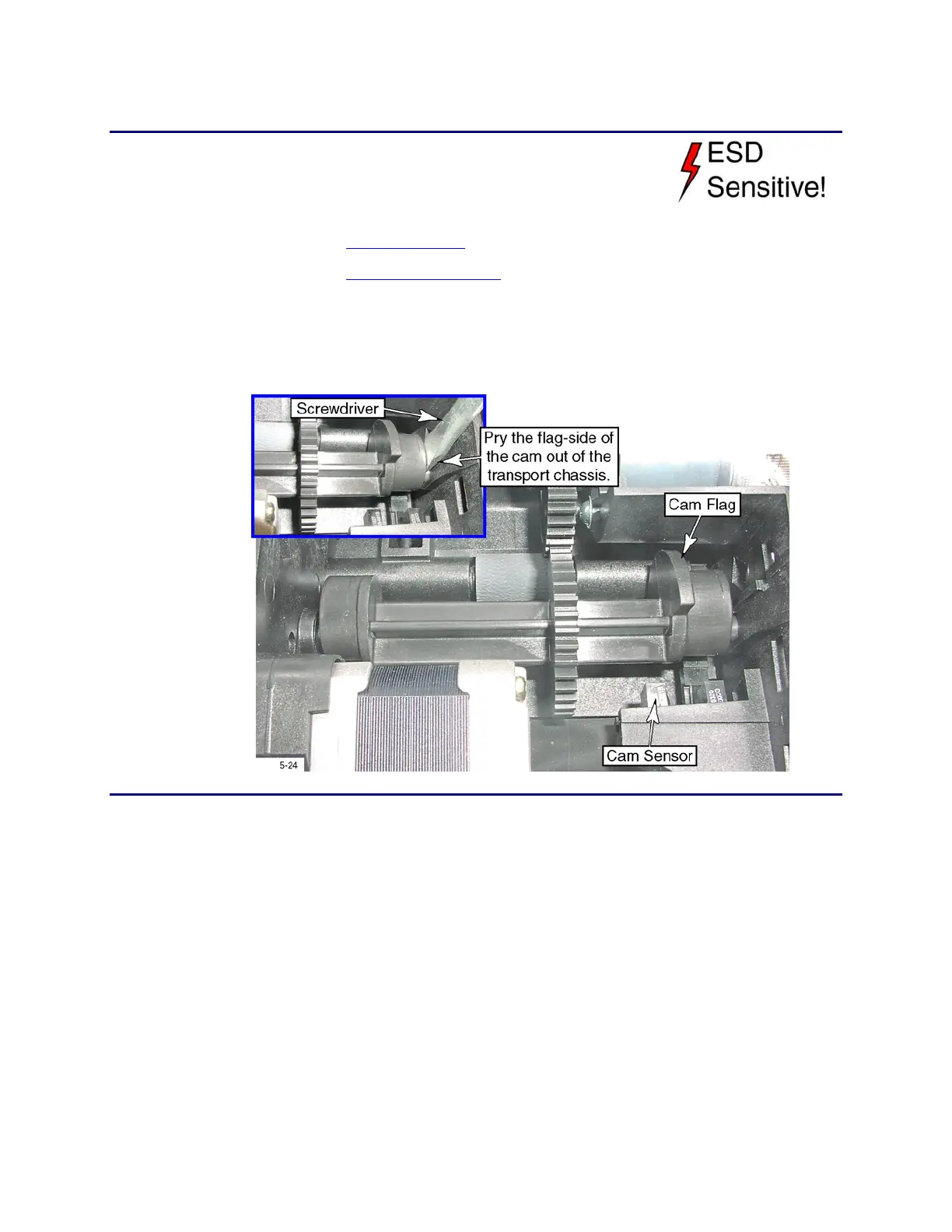

5. Rotate the cam until the cam flag is clear of the sensor.
6. Using a screwdriver, pry the flag-side of the cam out of the transport chassis.
7. Gently lift the cam out of the chassis, taking care not to bind the gears.
Follow-up Procedure
Run the Printhead Cam Test in Diagnostics to verify that the motor is functional.
To Next Page
