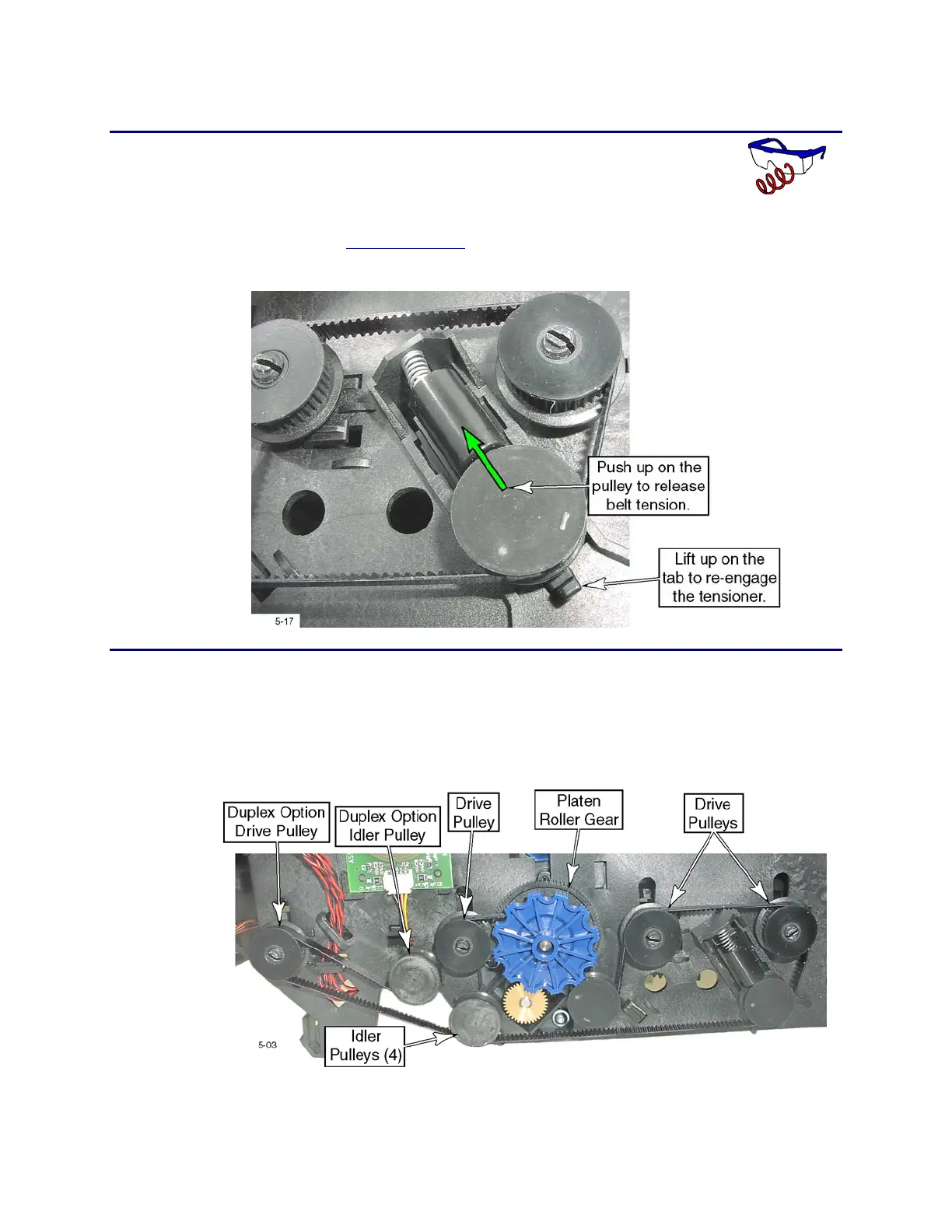

6-36 Removal and Replacement
Transport Timing Belt
Removal Procedure
1. Unplug the printer.
2. Remove the ribbon cartridge and cleaning roller.
3. Remove the
Main Enclosure (p. 6-8).
4. Release the belt tension, and remove the transport belt.
Replacement Notes
• Follow the belt routing shown below. If the printer is not equipped with the
duplex option, the drive pulley and idler pulley (shown at the left) will not be
present.
• Print a couple of test cards to verify that the printer is functioning properly.
