CP60 and CP60 Plus Service Manual 6-55
Printhead Lifter
Removal Procedure
1. Unplug the printer.
2. Remove the ribbon cartridge and cleaning roller.
3. Remove the
Main Enclosure (p. 6-8).
4. Depending on the configuration of the printer, remove either the
Rear Rocker
Assembly
(p. 6-41) or the Magnetic Stripe Rocker Assembly (p. 6-80).
5. Remove the
Platen Roller (p. 6-53).

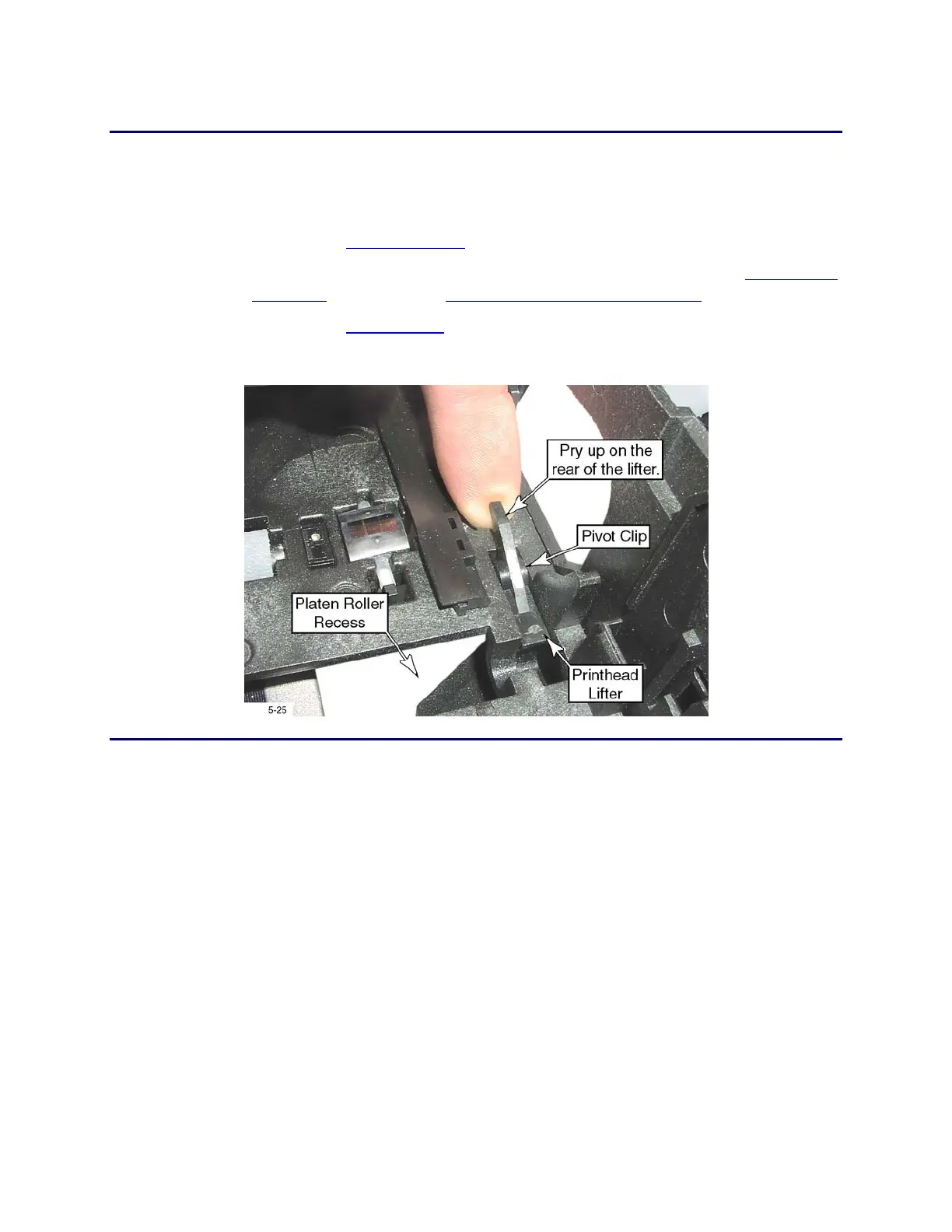

6. Grasp the rear lever of the lifter and pull up and out of the chassis.
Follow-up Procedure
• Run the Printhead Cam Test in Diagnostics to verify that the lifters are
operating properly.
