CP60 and CP60 Plus Service Manual 6-29
Transport Assembly
This is a general procedure for removing the transport assembly from the printer.
This procedure is a prerequisite to many other procedures.
If you are performing this procedure to access a component, you may want to
consider disconnecting only those cables necessary to turn the transport on
its side. This reduces the number of connectors needed to be re-connected on
the control board.
Removal Procedure
1. Unplug the printer.
2. Remove the ribbon cartridge and cleaning roller.
3. Remove the
Main Enclosure (p. 6-8).

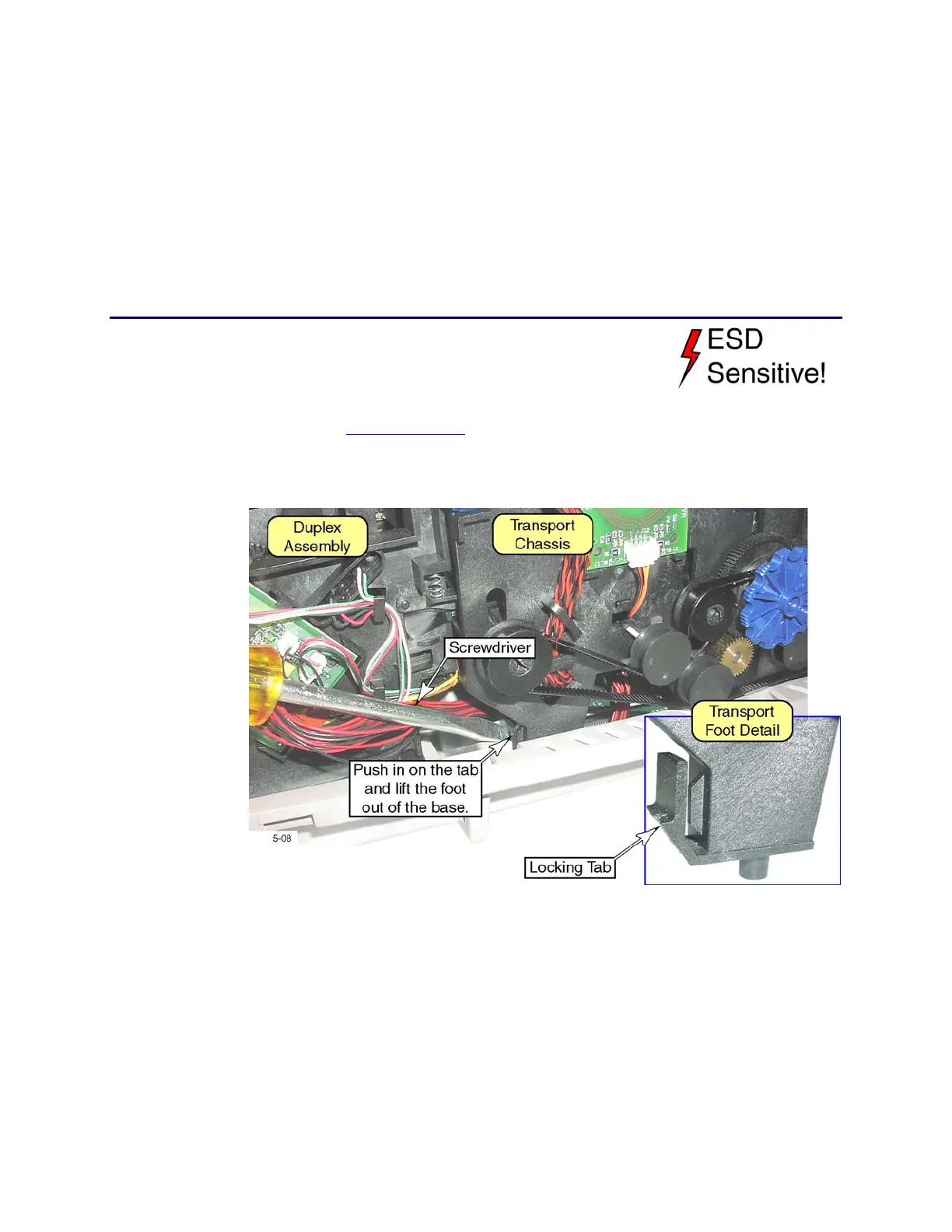

4. Press in on the transport chassis locking tabs, and lift up on the back of the
transport assembly.
