CP60 and CP60 Plus Service Manual 6-87
Contactless Smart Card Coupler
The components shown in this procedure may vary depending on the type of
coupler used, but the general procedure remains the same.

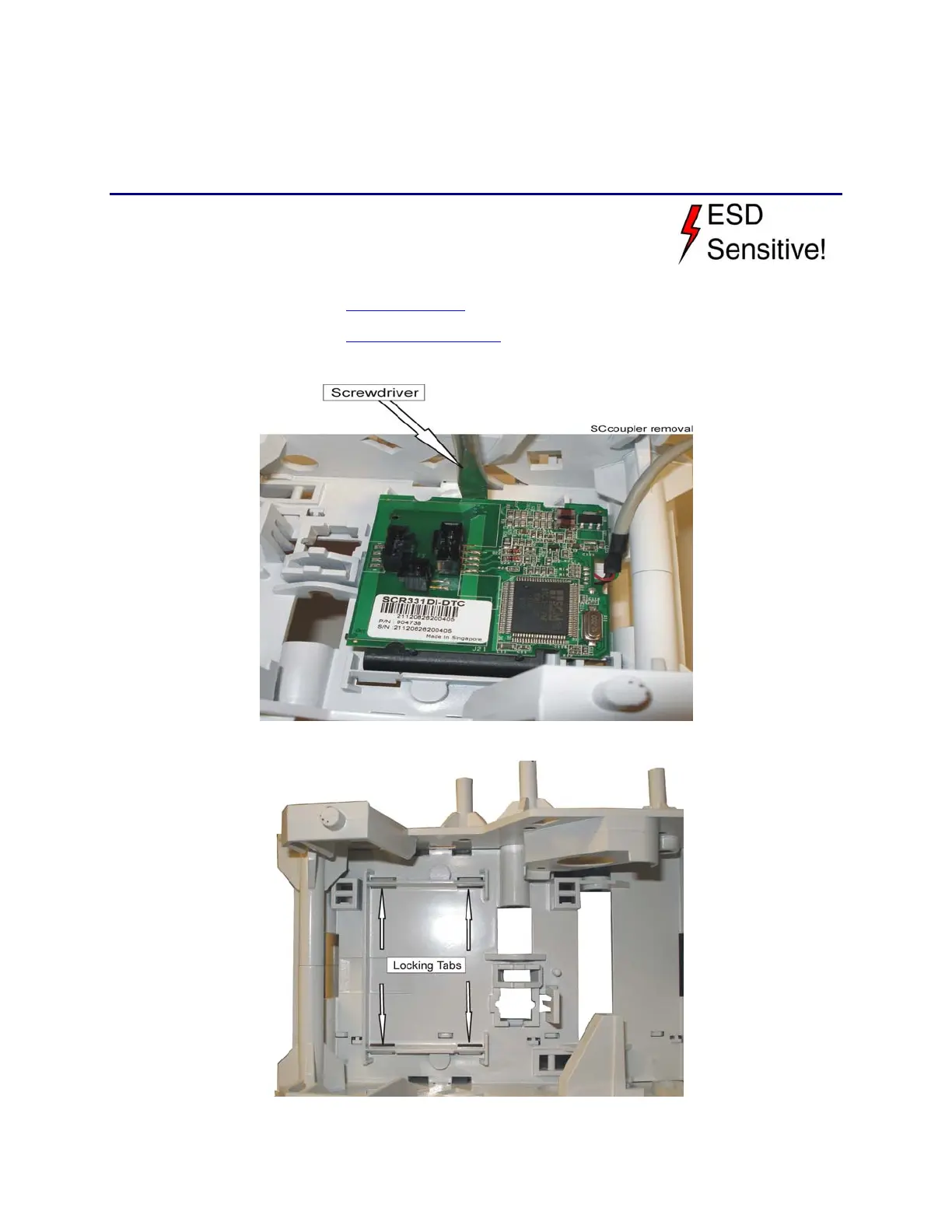

Removal Procedure
1. Unplug the printer.
2. Remove the ribbon cartridge and cleaning roller.
3. Remove the
Main Enclosure (p. 6-8).
4. Remove the
Transport Assembly from the base (p. 6-29).
5. Use a screwdriver to press the plastic locking tabs out of the chassis.
6. Remove the coupler bracket or plastic cover.
To Next Page
