Testing the Smart Card Option

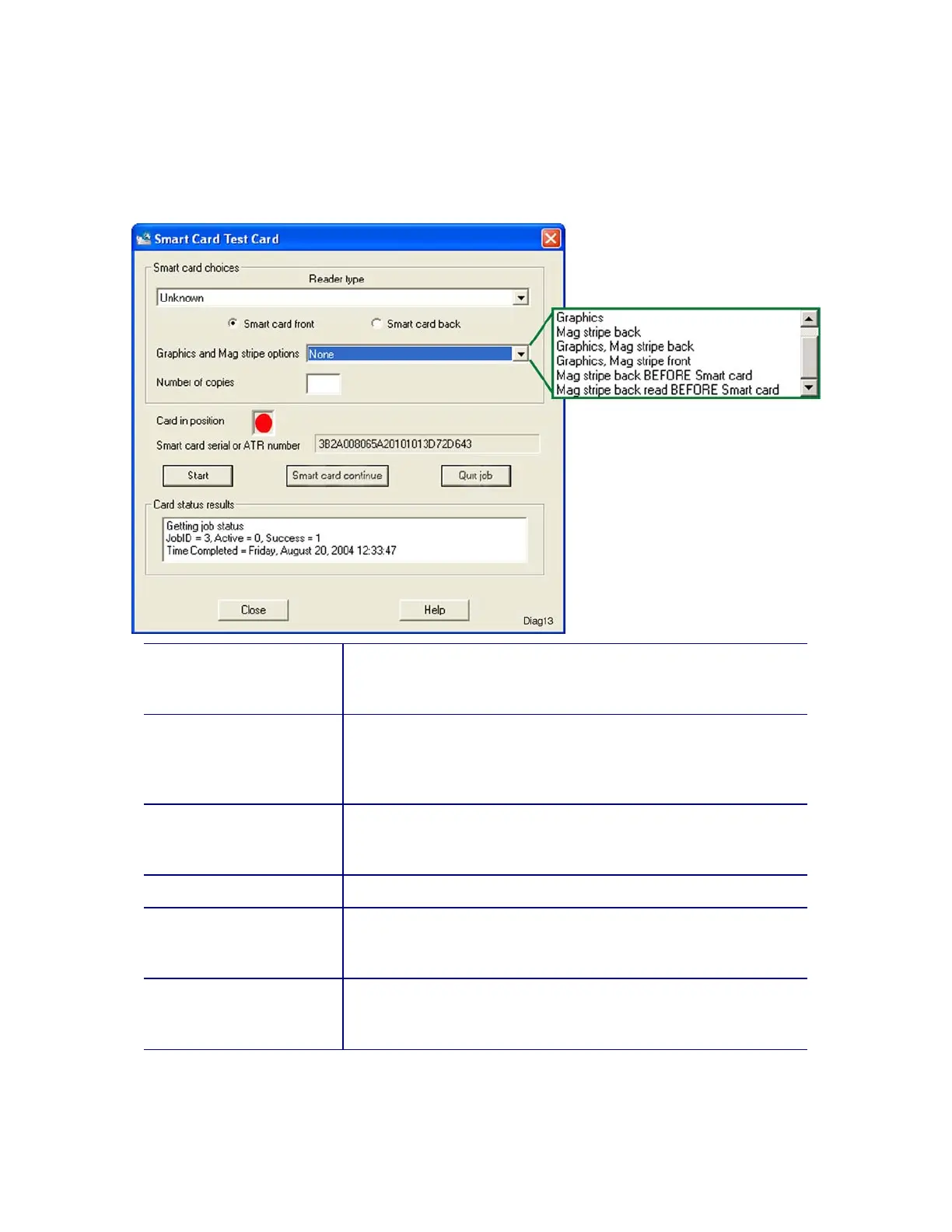

The smart card test is a built-in routine to simulate smart card personalization. A
card is picked from the hopper, personalized, and transported to the smart card
module. The module issues the Reset command to the card, and the card
responds by sending its ATR (Answer To Reset) signal.
Reader Type
The list contains names of every smart card reader
connected to the computer, whether they are part of the
printer or not. Select the reader for the printer.
Smart card front
Smart card back
By default the contact position is set to front. When back is
selected, the card needs to be loaded with the contacts
facing down, and the duplex module (only on selected
model printers) flips the card over.
Graphics and Mag
stripe options
Select the personalization options that should be used
when making a smart card test card. Text will be printed on
the card for all options except None and Mag stripe back.
Number of copies
Set the number of times you want to perform the test.
ATR Number The ATR number is issued by the card and displayed any
time there is a reset command. This number identifies the
manufacturer and the card type.
Card in position The sensor that detects a card is located on the smart card
connector. The icon turns red when a card is in place and
fully inserted under the contacts.
