CP60 and CP60 Plus Service Manual 6-57
Rear Card Guide
Removal Procedure
1. Unplug the printer.
2. Remove the ribbon cartridge and cleaning roller.
3. Depending on the configuration of the printer, remove either the
Rear Rocker
Assembly
(p. 6-41) or the Magnetic Stripe Rocker Assembly (p. 6-80).

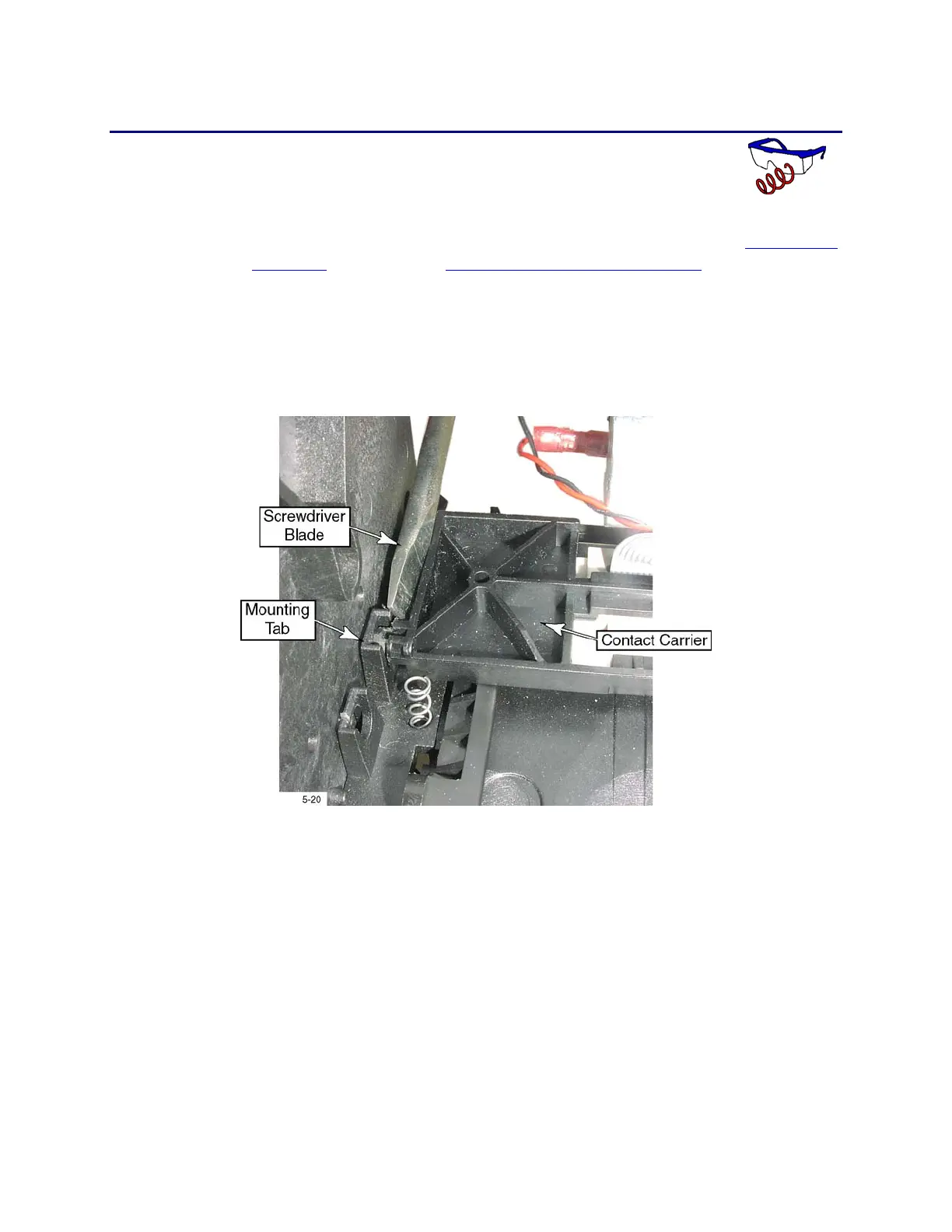

4. If present, partially remove the smart card contact carrier:
A. Insert a screwdriver between the carrier and the left mounting tab.
B. Twist the blade to pry the carrier out of the mounting tab.
C. It is not necessary to fully remove the carrier.
