5-26 Adjustments
Running Magnetic Stripe Diagnostics

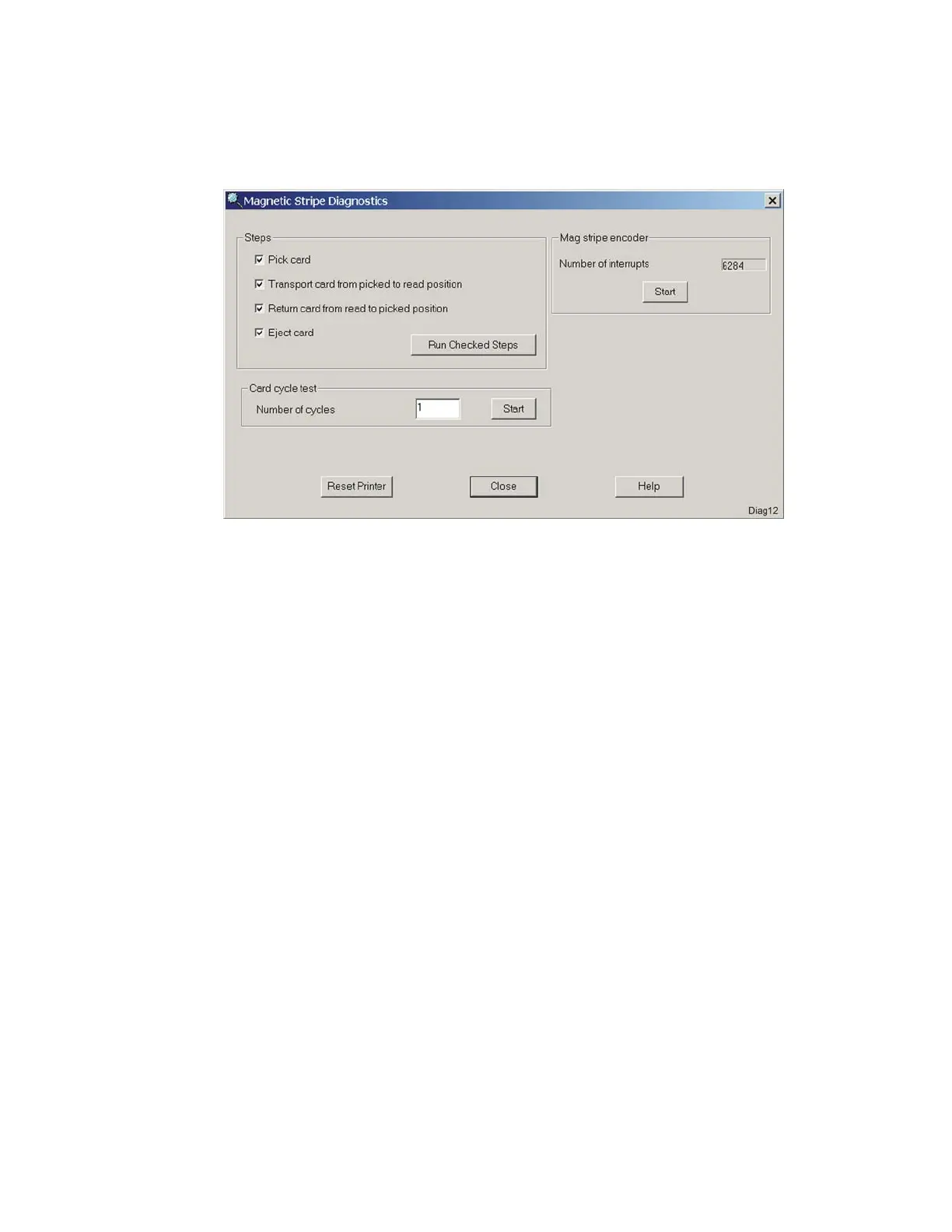

The Magnetic Stripe Diagnostics dialog box provides access to functions for
troubleshooting the magnetic stripe module.
• Select a series of steps to perform, and click on the Run Checked Steps
button.
• If you want to use a test that picks a card and passes it through the magnetic
stripe area multiple times, enter the number of times in the Number of cycles
box and click Start.
• Click on Start in the Mag stripe encoder test to cause the transport motor to
turn for about half a second and report the number of encoder interrupts in
the display box.
