CP60 and CP60 Plus Service Manual 6-15

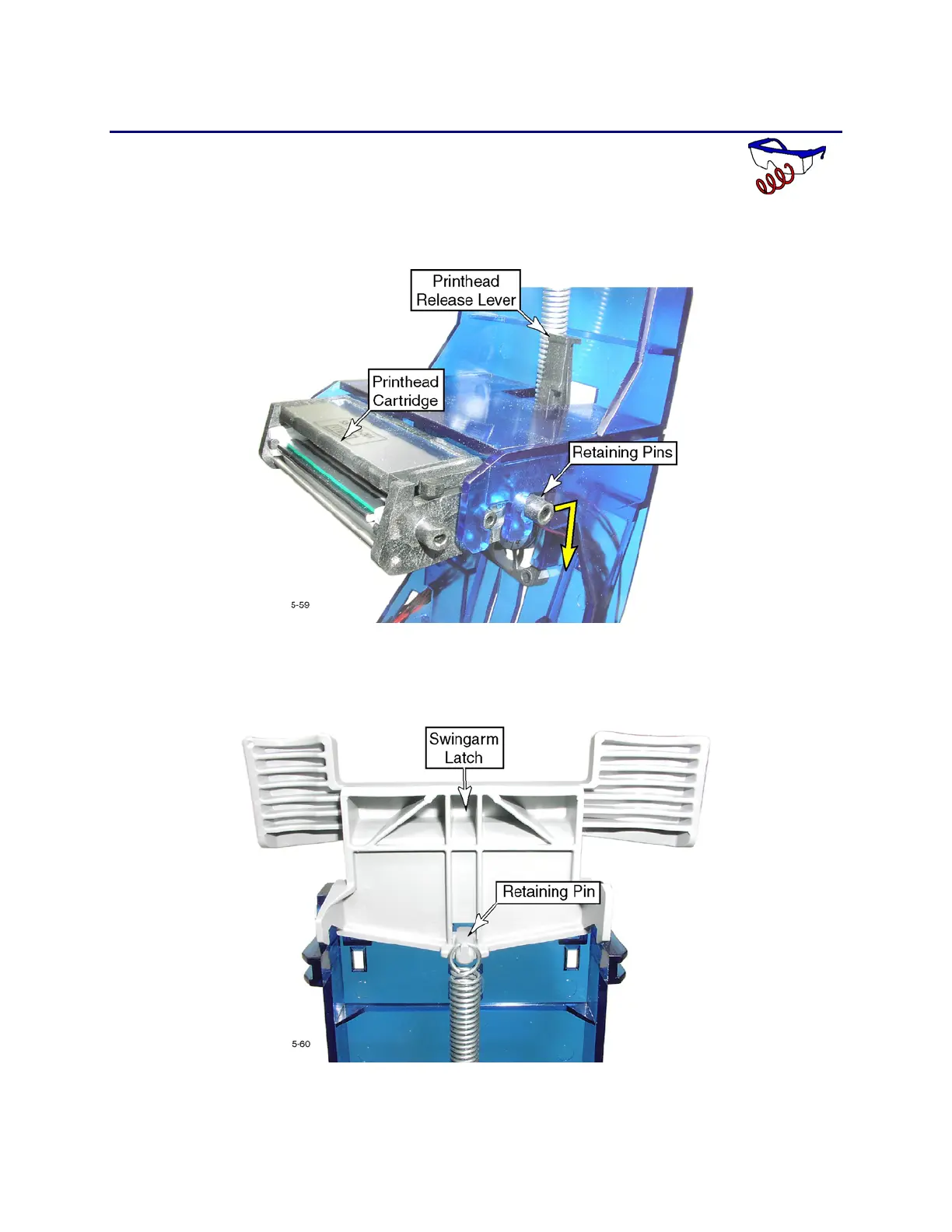

Printhead Spring
Removal Procedure
1. Unplug the printer.
2. Remove the ribbon cartridge and cleaning roller.
3. Press in on the printhead release lever and remove the printhead.
4. Pull up firmly on the printhead spring to unhook it from the retaining pin on
the swingarm latch.
5. Remove the other end of the spring from the printhead release lever.
