Magnetic Stripe Registration Sensor (With Clear Card)
The Magnetic Stripe registration sensor on the Clear Card option is located in the
same position in the chassis as the standard Magnetic Stripe option. The sensor is

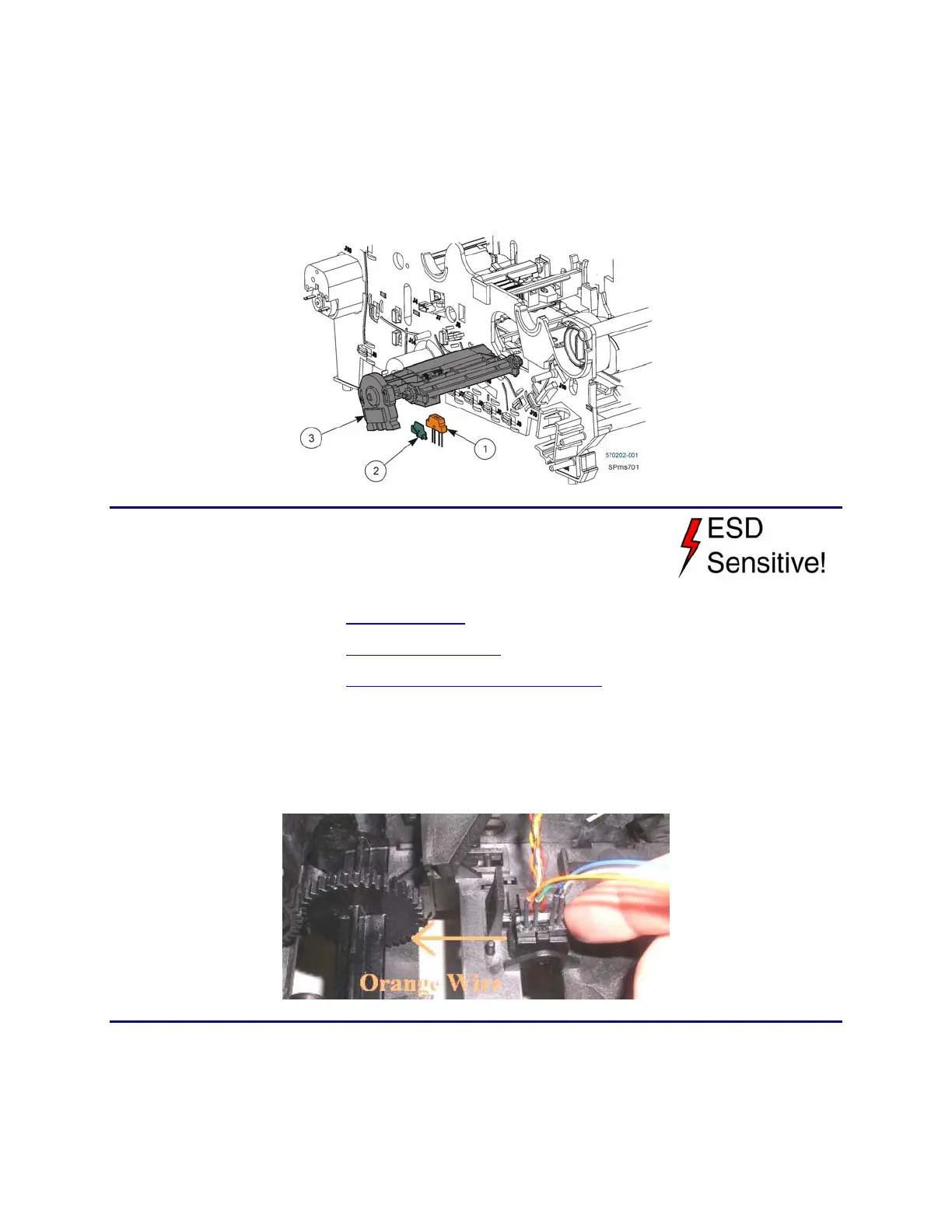

thinner than the standard sensor. It uses a spacer (2 in the following figure) to
hold the sensor securely in place and positions the sensor to limit reflection off
the rocker shaft.
Removal Procedure
1. Unplug the printer.
2. Remove the ribbon cartridge and cleaning roller.
3. Remove the
Main Enclosure (p. 6-8).
4. Remove the
Transport Assembly from the base (p. 6-29).
5. Remove the
Magnetic Stripe Rocker Assembly (p. 6-80).
6. Push the sensor's cable connector through the opening in the chassis (from
outside to inside).
7. Carefully push down on the sensor from above and remove it through the
bottom of the chassis, being careful not to lose the spacer.
Replacement Notes
• Reuse the spacer with the new sensor.
• Use Diagnostics to verify that the sensor is working properly.
