CP60 and CP60 Plus Service Manual 6-9
Card Hopper
Removal Procedure
1. Unplug the printer.
2. Remove the ribbon cartridge and cleaning roller.
3. Remove the
Main Enclosure (p. 6-8).

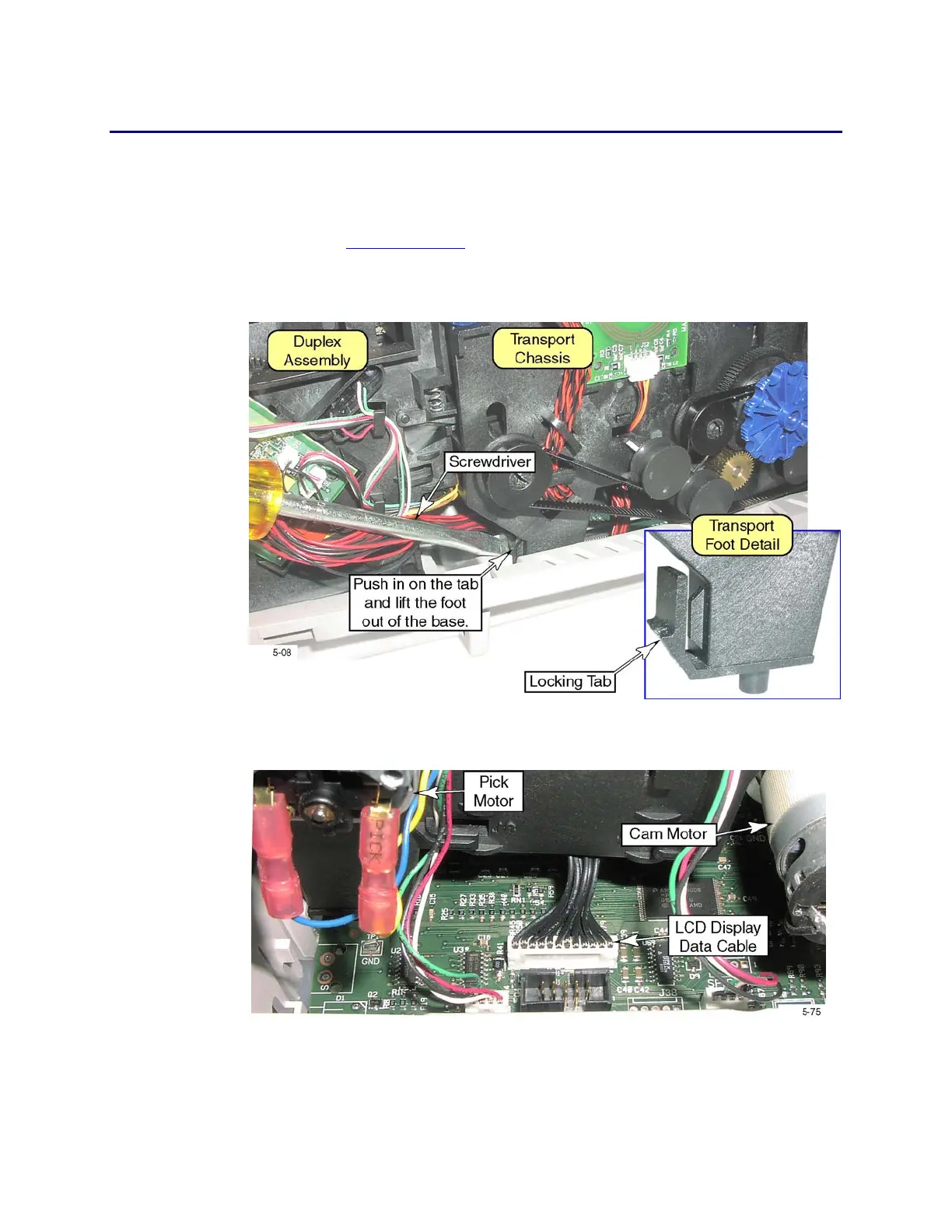

4. Press in on the transport chassis locking tabs, and lift up on the back of the
transport assembly.
5. If the printer is equipped with an LCD display in the hopper, disconnect the
cable from the main control board.
To Next Page
