CP60 and CP60 Plus Service Manual 6-23
Motors
Transport Motor
Removal Procedure
1. Unplug the printer.
2. Remove the ribbon cartridge and cleaning roller.
3. Remove the
Main Enclosure (p. 6-8).
4. Remove the
Transport Assembly from the base (p. 6-29).
5. If the transport motor is not already disconnected from the main control
board, unplug it.

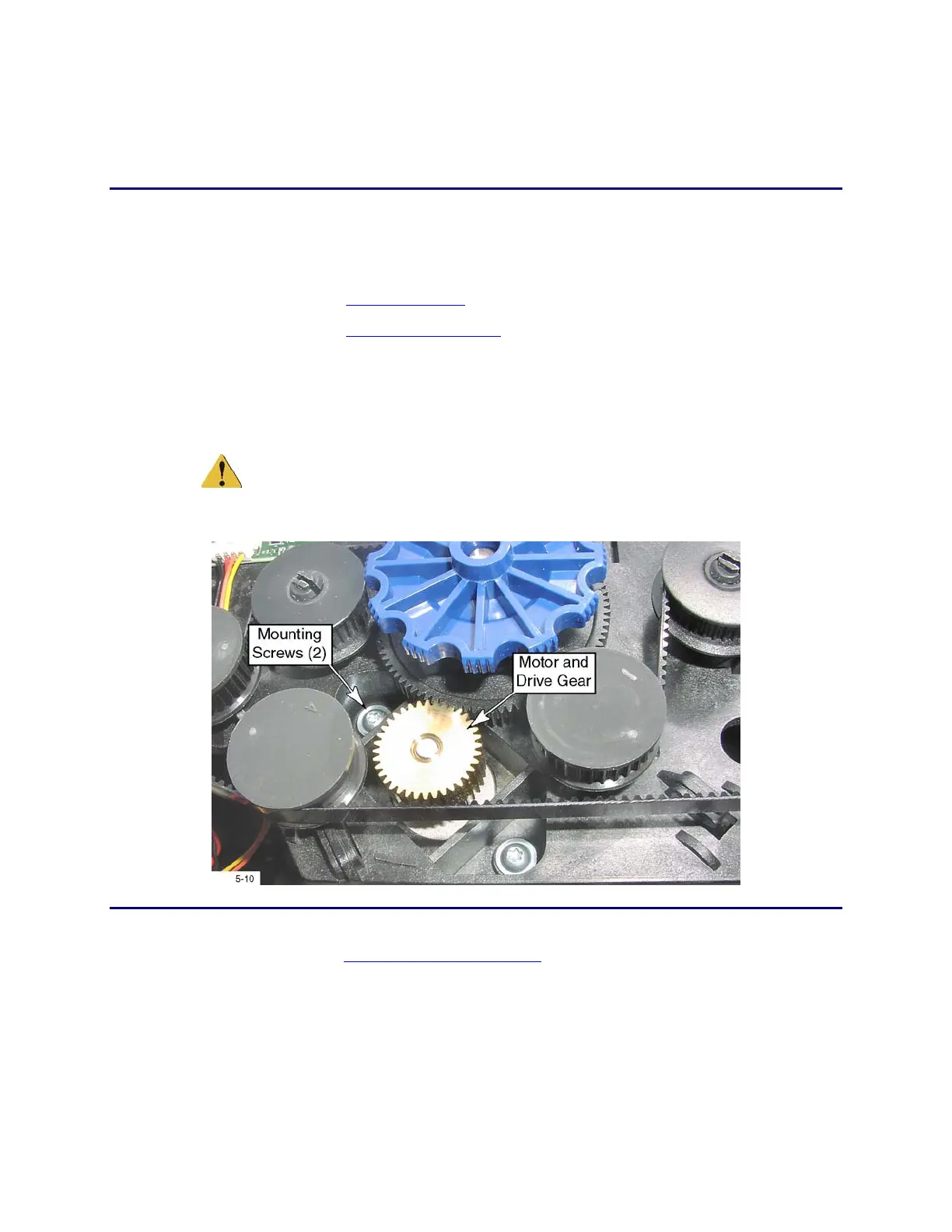

6. Using the T10 Torx driver, remove the two screws that hold the transport
motor. During replacement, tighten the screws to 8 in-lbs.
Caution. Do not force the motor against the platen roller. Doing so causes
print artifacts.
Follow-up Procedure
Refer to the Functional Block Diagram for replacement details.
Use the motor tests in Diagnostics to verify the motor is functioning properly.
Print several test cards.
