2-24 Theory of Operation
Magnetic Media Locations

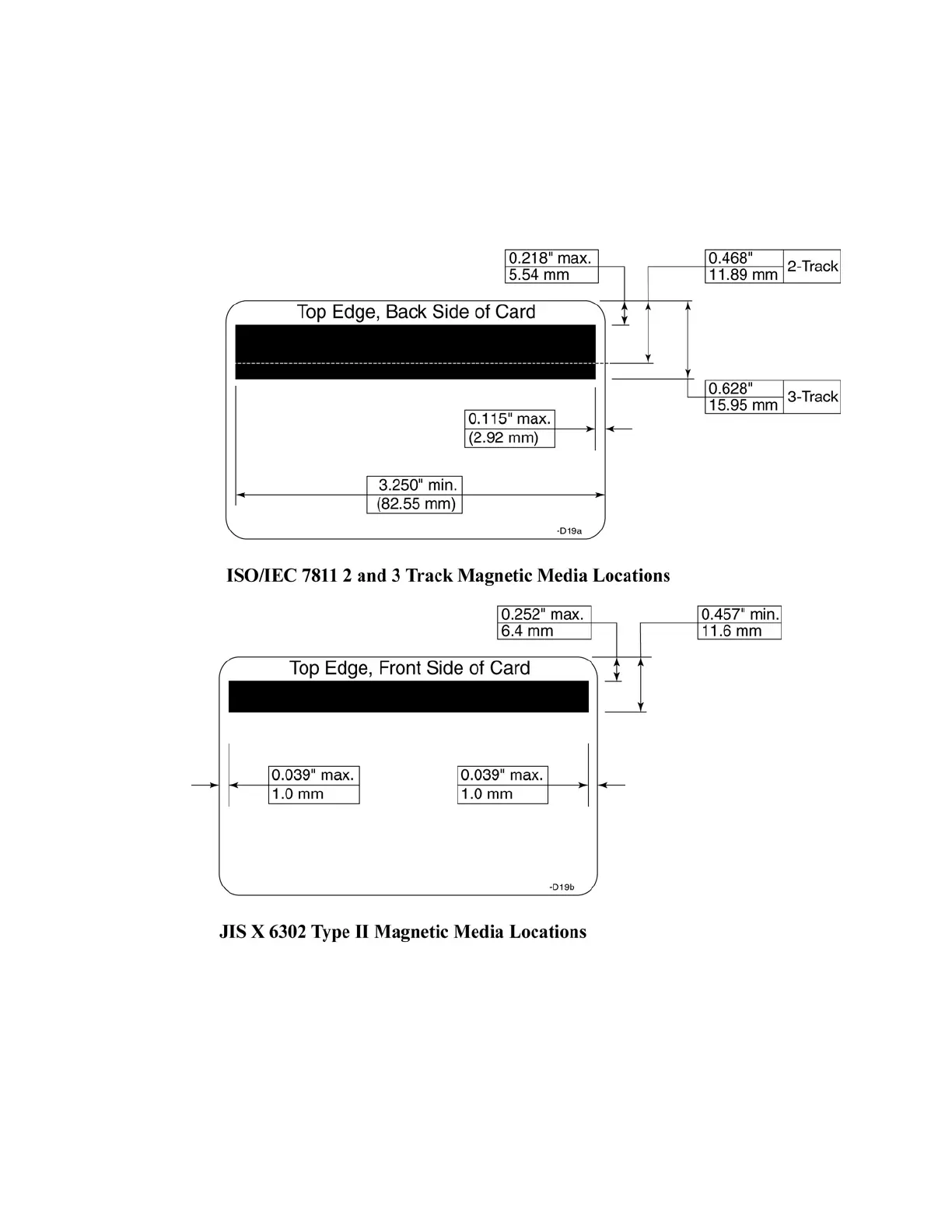

The physical location and size of the magnetic stripe on a card follows the
specifications outlined in the two drawings below. The first graphic is for a two
or three track card (ISO/IEC and JIS Type I). (Note that under the ISO and JIS
standards, even if only one of the three tracks is used, the minimum track size
follows this specification.)
