CP60 and CP60 Plus Service Manual 6-69
Duplex Motor
Removal Procedure
1. Unplug the printer.
2. Remove the ribbon cartridge and cleaning roller.
3. Remove the
Main Enclosure (p. 6-8).

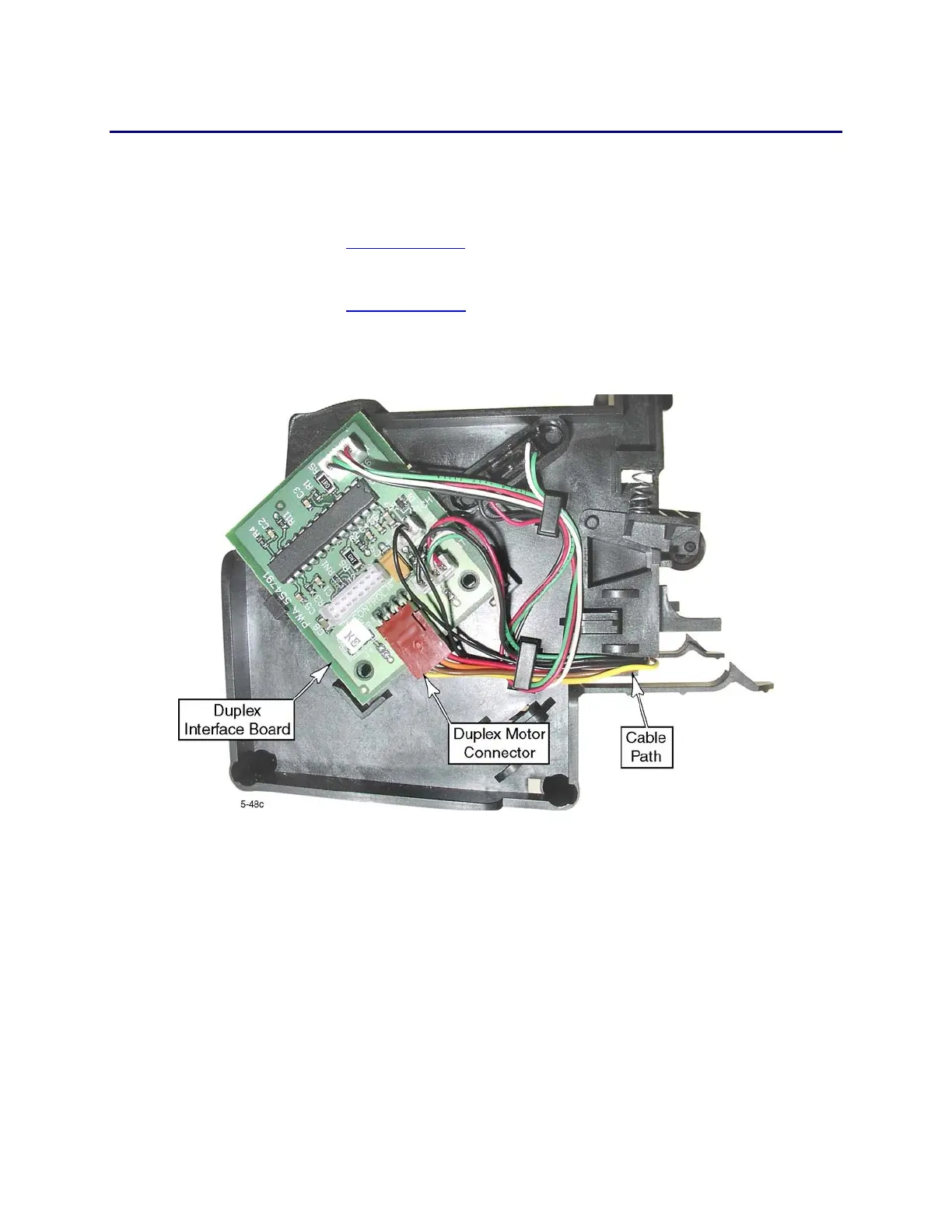

4. Disconnect the duplex interface cable from the interface board.
5. Remove the
Duplex Module (p. 6-61) from the printer.
6. Disconnect the motor connector from the interface board.
7. Free up the cable from the retaining tabs.
