6-46 Removal and Replacement
Cleaning Drive Roller
Removal Procedure
1. Unplug the printer.
2. Remove the ribbon cartridge and cleaning roller.
3. Remove the
Main Enclosure and card hopper (p. 6-8).
4. Remove the
Transport Timing Belt (p. 6-36).

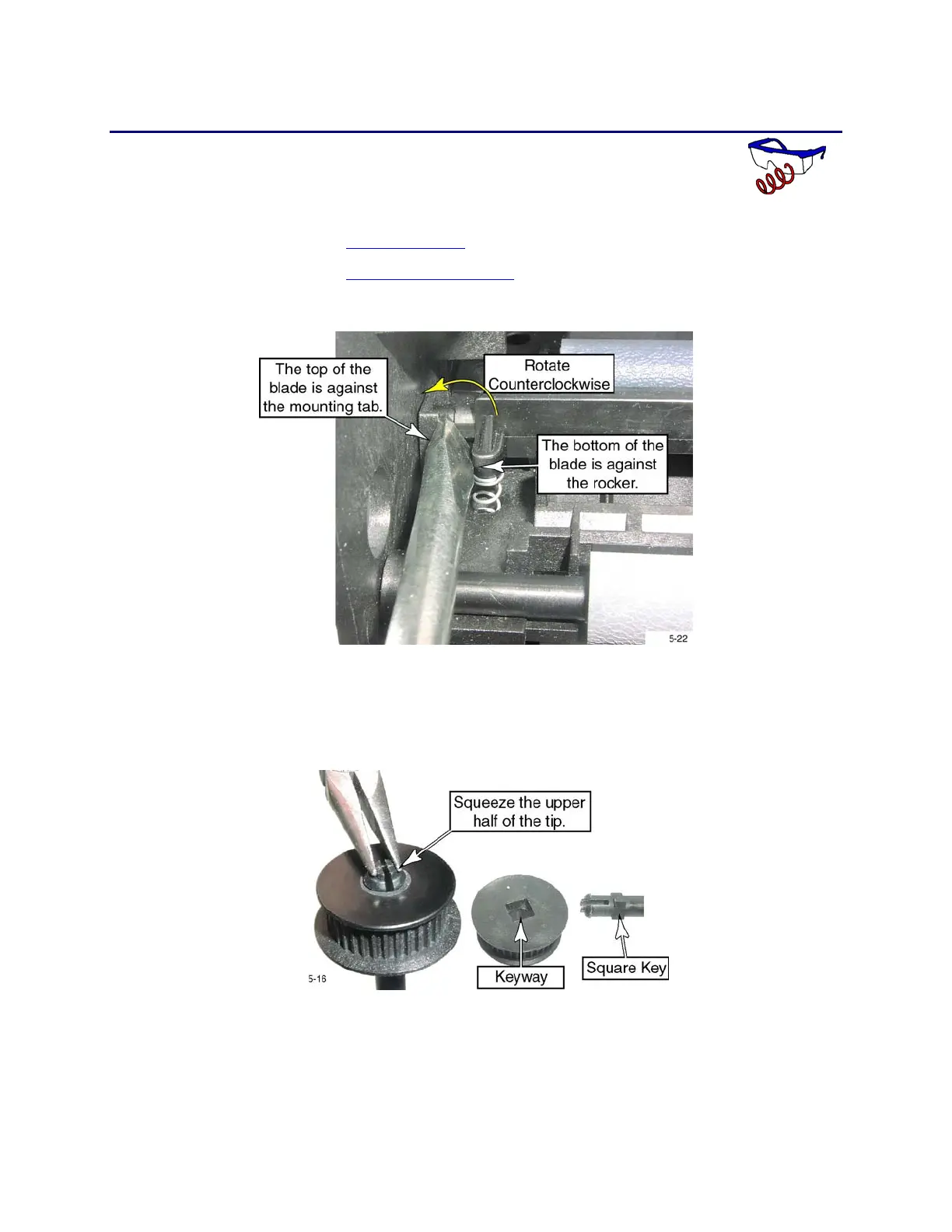

5. Remove the cleaning rocker assembly.
6. Remove the pulley from the shaft by squeezing the end of the shaft, and
slipping the pulley off.
The pulley's flange is permanently adhered to the pulley. Do not try to
remove the flange.
To Next Page
