CP60 and CP60 Plus Service Manual 6-13
Swingarm Assembly
Note that the user manual refers to this assembly as a cover arm.
Removal Procedure
1. Unplug the printer.
2. Remove the ribbon cartridge and cleaning roller.
3. Remove the
Main Enclosure (p. 6-8).
4. Optional: If the swingarm needs to be fully removed from the printer, it will
be necessary to remove the printhead cable.
A. Remove the
Transport Assembly from the base (p. 6-29).
B. Disconnect the printhead power and data cable connectors from the main
control board.
C. Disconnect the printhead fan connector from the main control board.
D. Pull the cables back through the cable guides in the transport chassis.

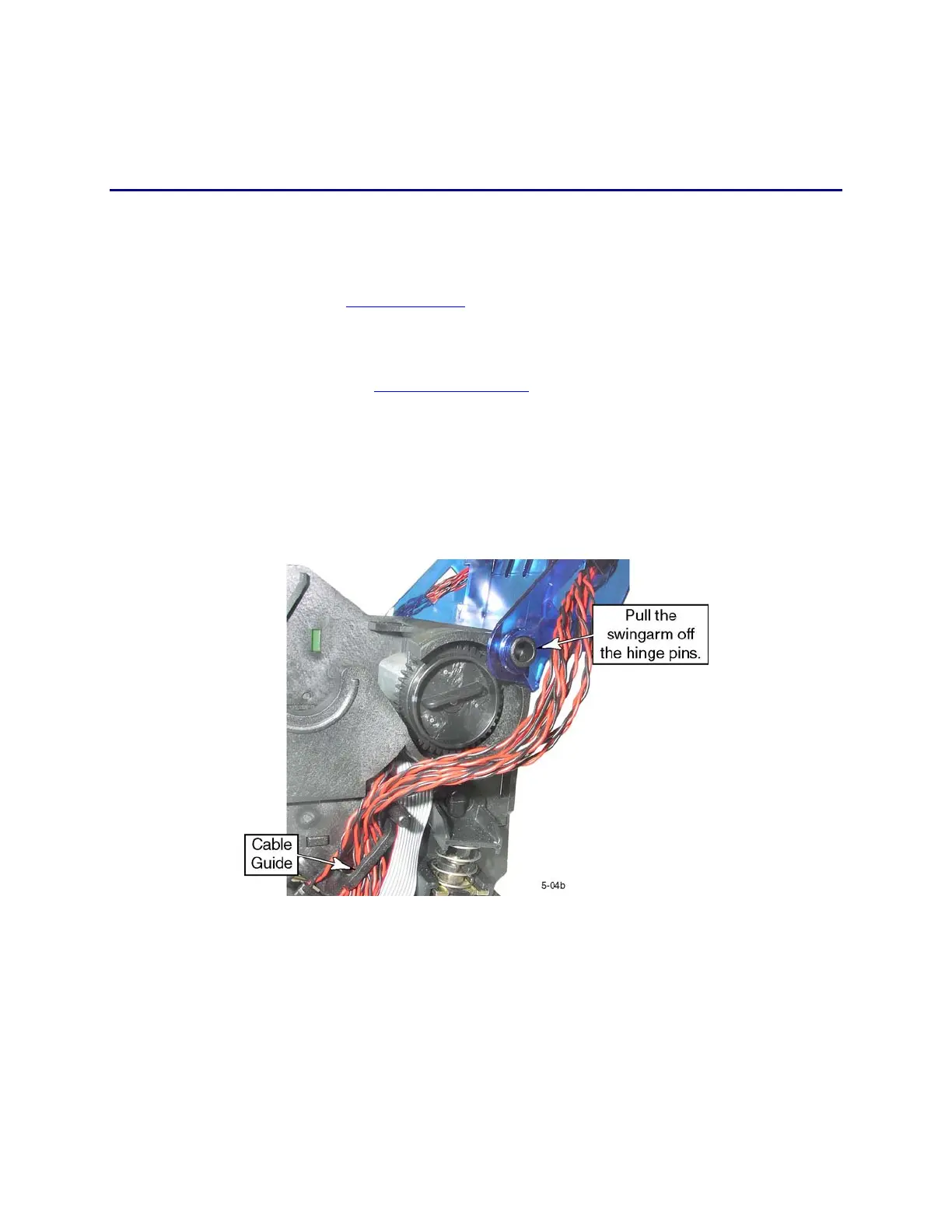

5. Unhinge the swingarm by pulling each side off the hinge pins.
