6-48 Removal and Replacement
Front Drive Roller
Removal Procedure
1. Unplug the printer.
2. Remove the ribbon cartridge and cleaning roller.
3. Remove the
Main Enclosure (p. 6-8).
4. Lift the
Ribbon Guide (p. 6-42) out and set it aside.
5. Remove the
Front Rocker Assembly (p. 6-40).
6. Remove the
Front Card Guide (p. 6-56).

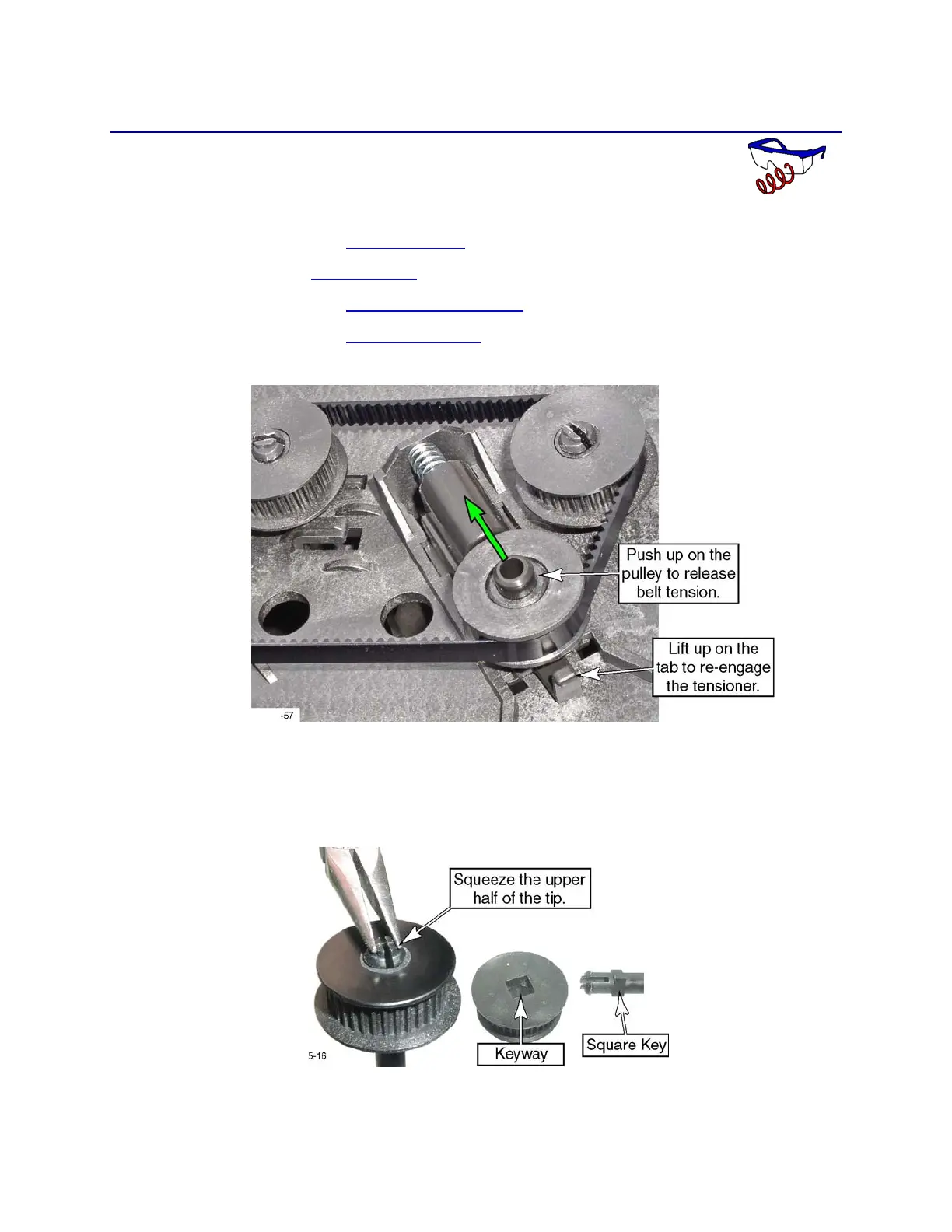

7. Release the belt tension, and remove the transport belt.
8. Remove the pulley from the shaft by squeezing the end of the shaft, and
slipping the pulley off.
The pulley's flange is permanently adhered to the pulley. Do not try to
remove the flange.
