DataCard CP60 - Exterior Components

CP60 and CP60 Plus Service Manual 6-7
Exterior Components
Swingarm Cover

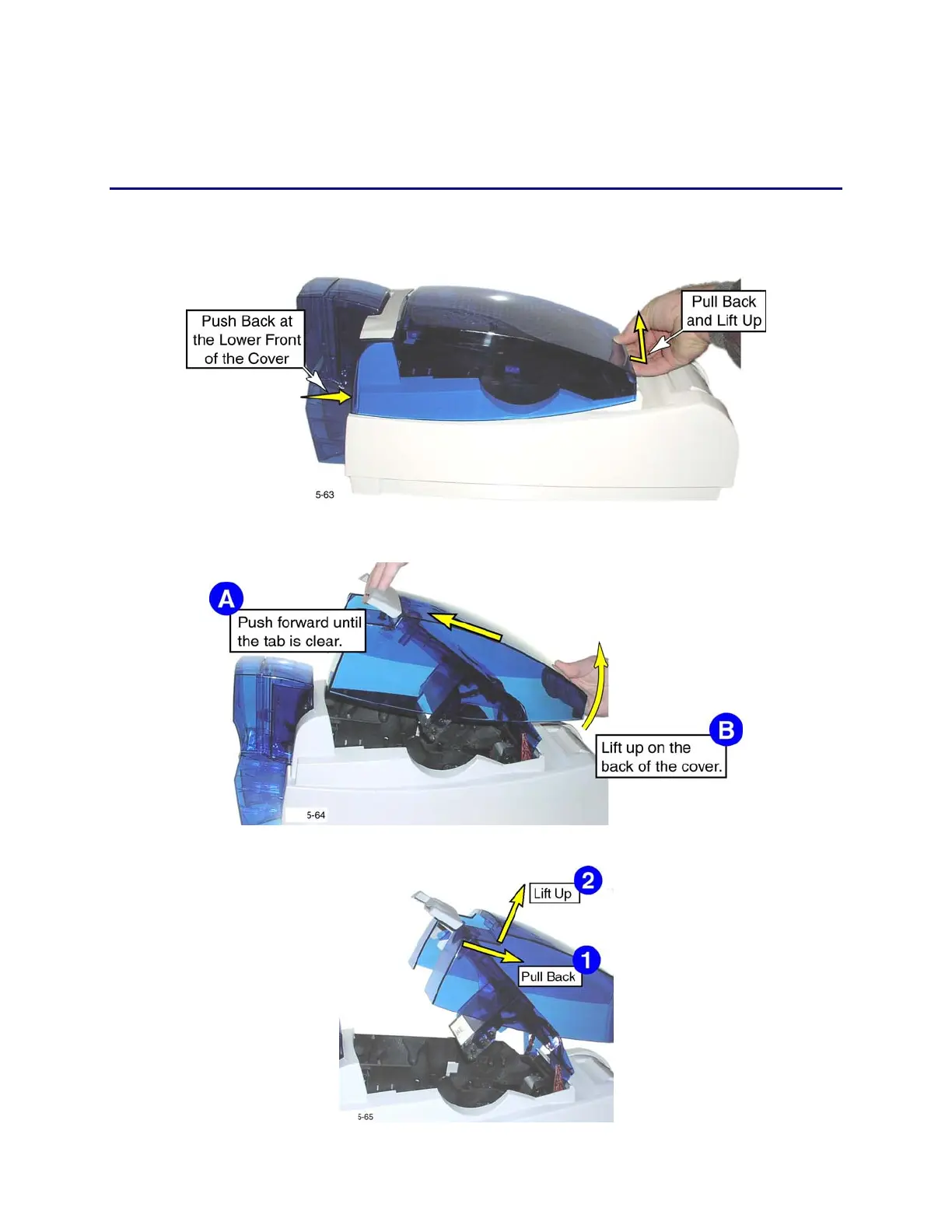

Removal Procedure
1. Place your fingertips under the back of the cover and pull back to release the
retaining tab.
2. Push the cover toward the swingarm latch, and then rotate it upward to
release the forward retaining tab.
3. Pull the cover back and lift it off the swingarm.
