CP60 and CP60 Plus Service Manual 6-59

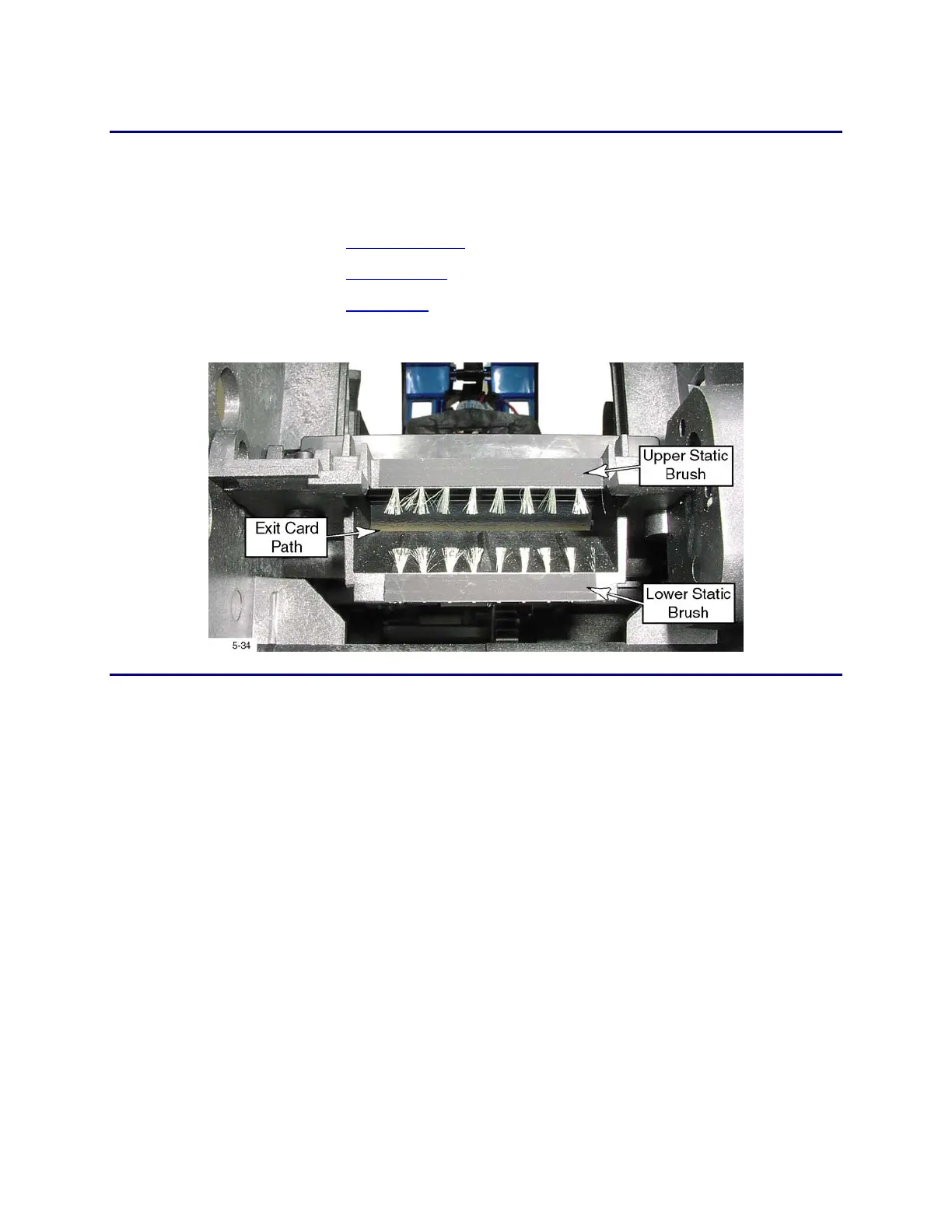

Static Brushes
Removal Procedure
1. Unplug the printer.
2. Remove the ribbon cartridge and cleaning roller.
3. Remove the
Main Enclosure (p. 6-8).
4. Remove the
Card Hopper (p. 6-9).
5. Remove the
Pick Roller (p. 6-44).
6. Peel the static brushes off the chassis surface.
Replacement Notes
• Before putting new static brushes on the transport, use isopropanol to clean
off the old adhesive residue from the chassis.
• Run the Pick and Eject Card Test in Diagnostics to verify that the pick motor is
functioning properly.
