6-40 Removal and Replacement
Front Rocker Assembly
When replacing the rocker assembly, it is a good idea to replace the springs as
well.
Removal Procedure
1. Unplug the printer.
2. Remove the ribbon cartridge and cleaning roller.

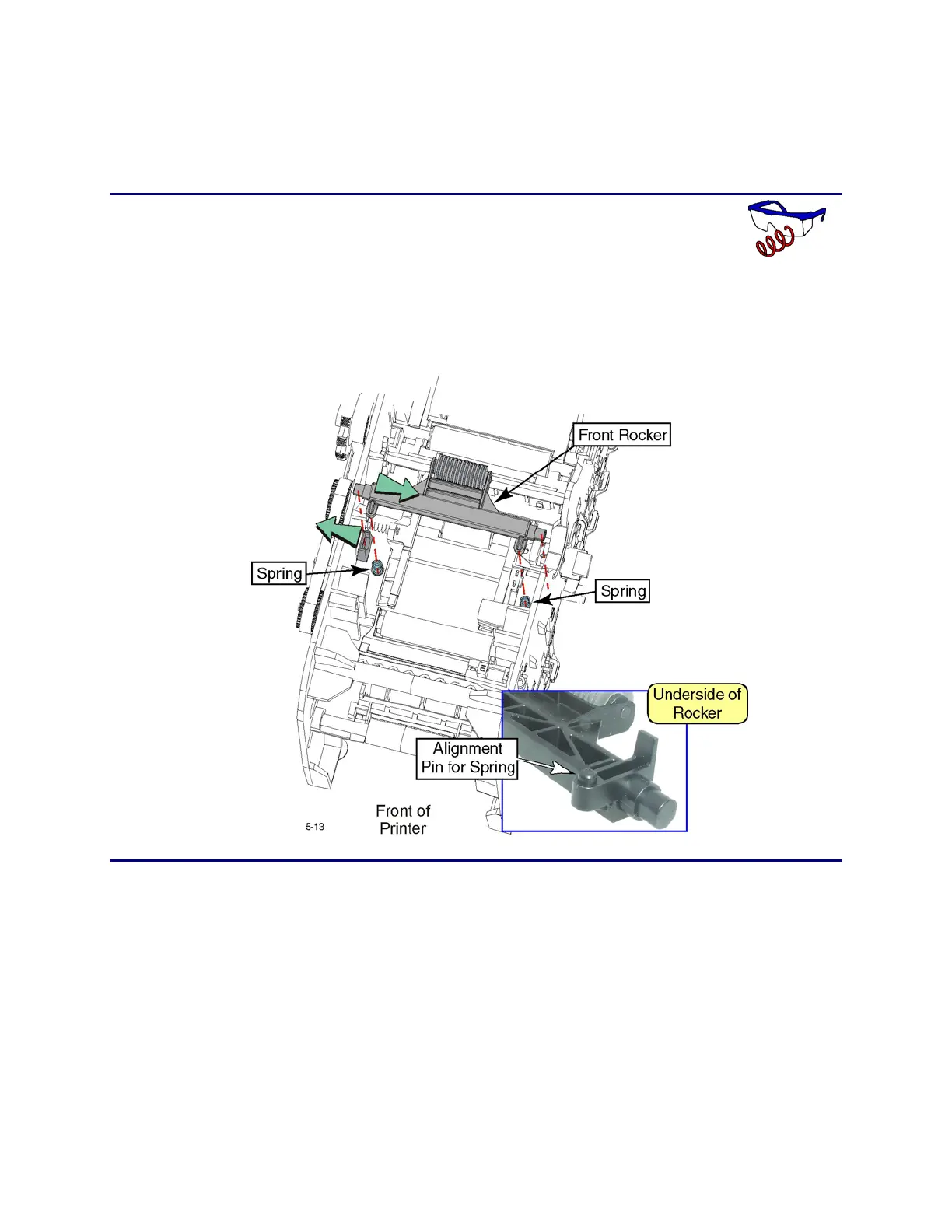

3. Push the rocker assembly one direction and the rocker mounting tab in the
opposite direction, and pull up on the rocker. Be careful not to lose the
springs.
Replacement Note
Make sure the springs are seated in the pockets of the transport chassis, and on
the alignment pins of the rocker assembly.
