DataCard CP60 - Duplex Interface Board

CP60 and CP60 Plus Service Manual 6-67
Duplex Interface Board
Removal Procedure
1. Unplug the printer.
2. Remove the ribbon cartridge and cleaning roller.
3. Remove the
Main Enclosure (p. 6-8).

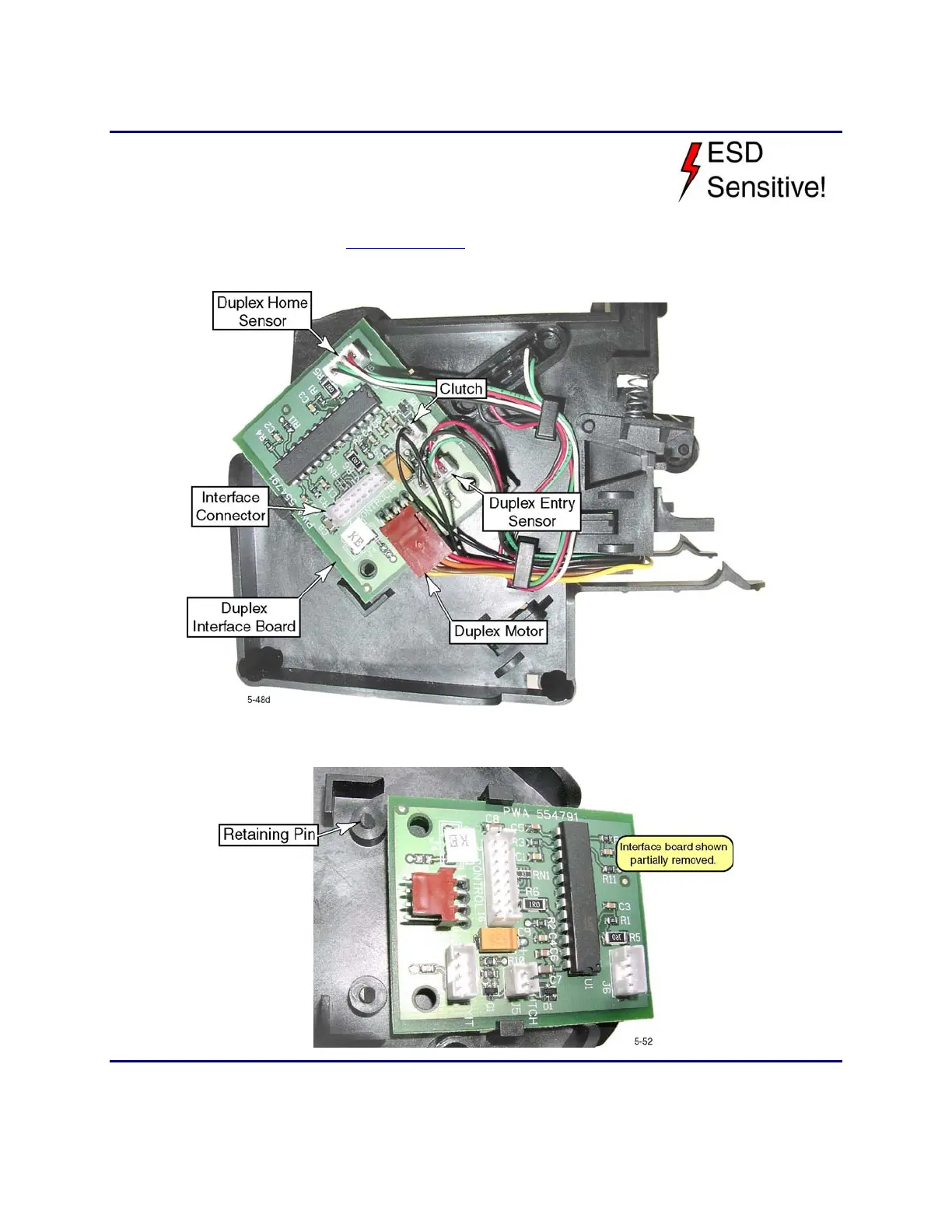

4. Disconnect all connectors from the duplex interface board.
5. Lift the edge of the board slightly and slide it off the retaining pins. Remove
the board.
Follow-up Procedure
Print several test cards to ensure the duplex is operating properly.
