6-28 Removal and Replacement
Follow-up Procedure
• Tighten the mounting screws to 8 in-lbs.

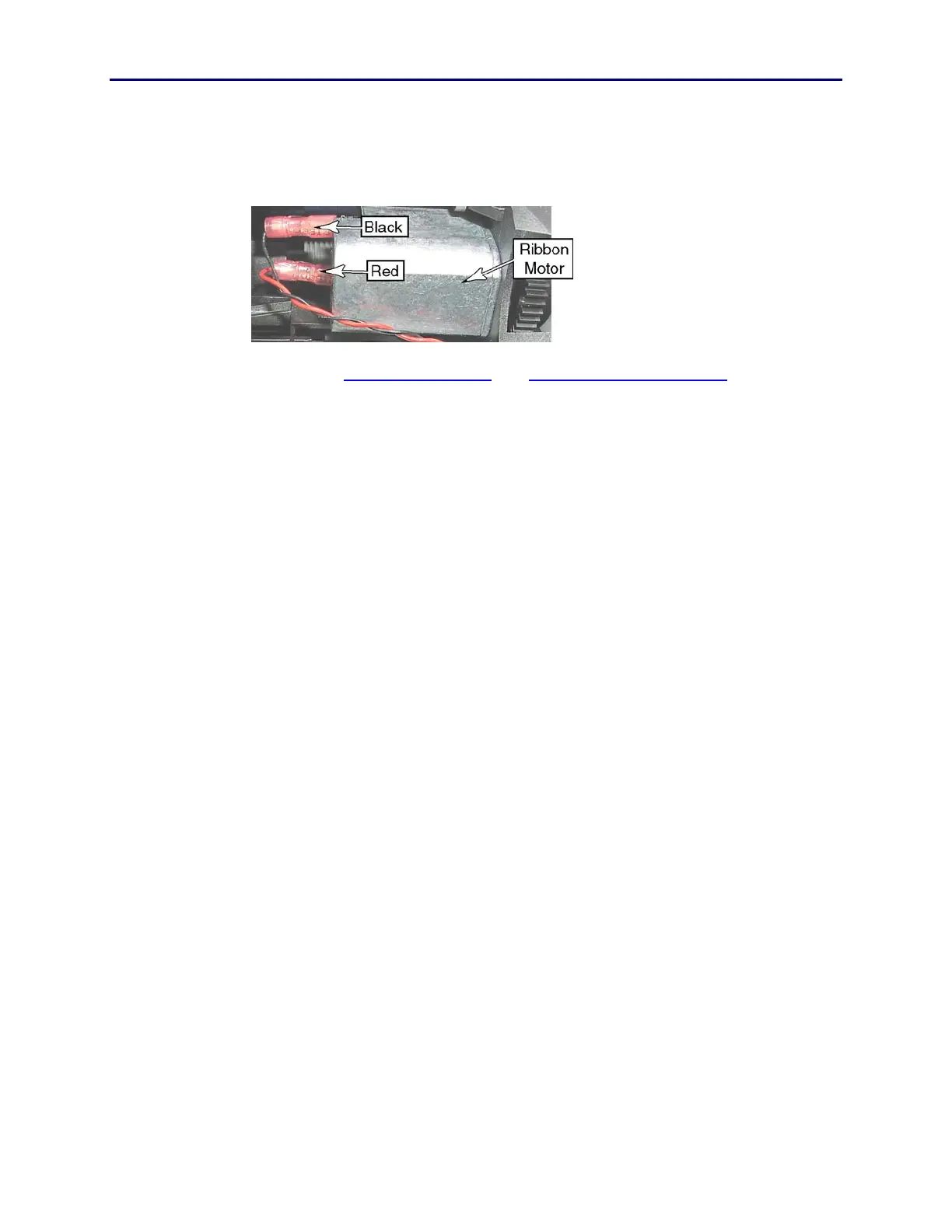

• Connect the wires as shown below.
• Make sure the wires are not routed under the motor.
• Refer to the Front Wire Routing and Functional Block Diagram for
replacement details.
• Run the ribbon motor test in Diagnostics to verify the motor is functioning.
• Print several test cards to verify the motor operates under a load.
